ABB CL Series User Manual

Connecting inputs
59
1SVC 440 795 M1100

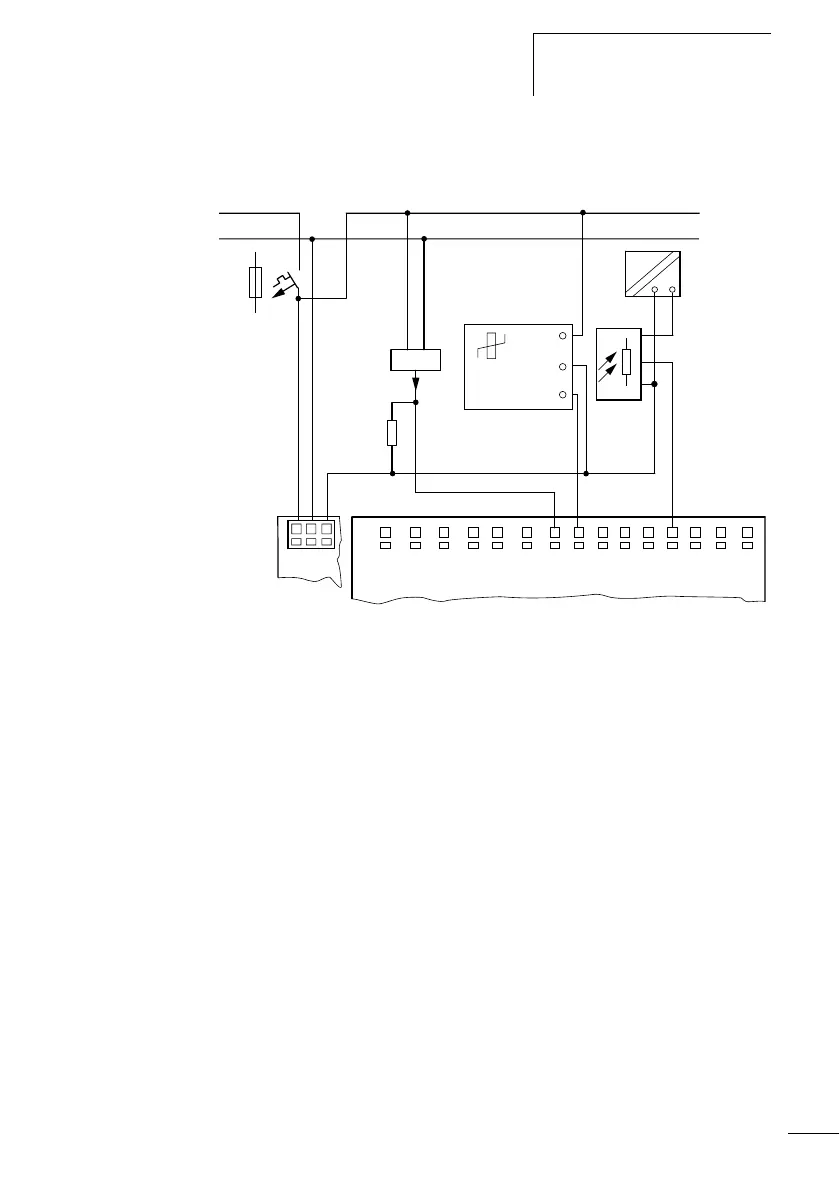

Temperature sensor, brightness sensor, 20 mA sensor
Figure: 42: Temperature sensor, brightness sensor, 20 mA
sensor
4 to 20 mA (0 to 20 mA) sensors can be connected easily
without any problem using an external 500 O resistor.
The following values apply:
• 4 mA = 1.9 V
• 10 mA = 4.8 V
• 20 mA = 9.5 V
(according to U = R x I = 478 O x 10 mA ~ 4.8 V)
L01–
> 1 A
L01+
I1 I3 I4 I7 I8 I9 I10
L02+
I2 I5 I6 I11 I12
+24V 0V 0V
0...10 V
0 V
+12 V
h
H
+24 V H
0 V
Out
0...10 V
–35...55 ˚C
a
500 O
4...20 mA

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
