Product Overview
Product manual 2CKA00xx73xxxxx
27
Device overview (rear side)
8 7 6 5
10
4
21 3
12 1113
14
9

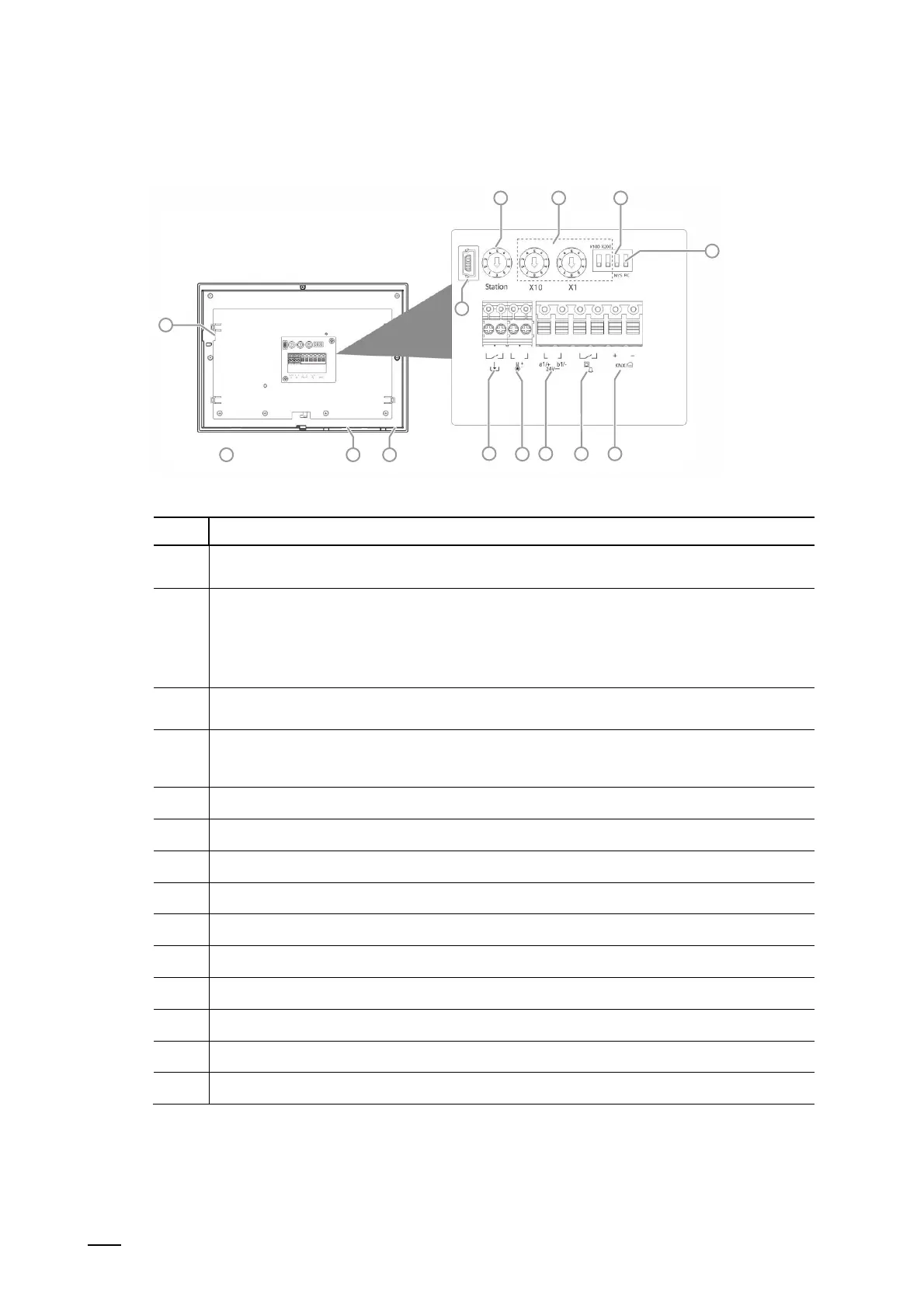

Fig. 3: Device overview ABB SmartTouch
®
rear side
Pos. Description
[1]
Address of outdoor station
Setting of the address of the standard outdoor station.
[2]
Indoor station address
Setting the address of the indoor station.
■
X10: Setting the tens digits.
■
X1: Setting the ones digits.
■
X100 und X200: Setting the hundreds digits
[3]
Master/slave function
Only one indoor station in each apartment can be set as "Master" (ON=Master).
[4]
Terminal resistor
In video installations or mixed audio and video installations, the switch on the last device of the
connection must be set on "RC on" (ON=RC on).
[5] KNX connection /ABB-free@home
®
[6] Floor call connection
[7] Connection of power input/bus connection
[8] Temperature sensor connection
[9] Binary input connection
[10]
USB connection for firmware upgrade (only for factory use)
[11] Temperature sensor
[12] Loudspeaker
[13] Microphone
[14] SD card insertion position
