ABB SmartTouch i-bus KNX User Manual

Connection, installation / mounting
Product manual 2CKA00xx73xxxxx
│
35
6.5.3 Mounting in flush-mounted installation box in solid wall
Installation on the basis of the instructions on the enclosed plastering template:
Notice
See mounting instructions on the enclosed plaster and drilling template.
First the bottom part of the flush-mounted installation box must be pulled off and
installed flush-mounted.
2
1
43 5
6

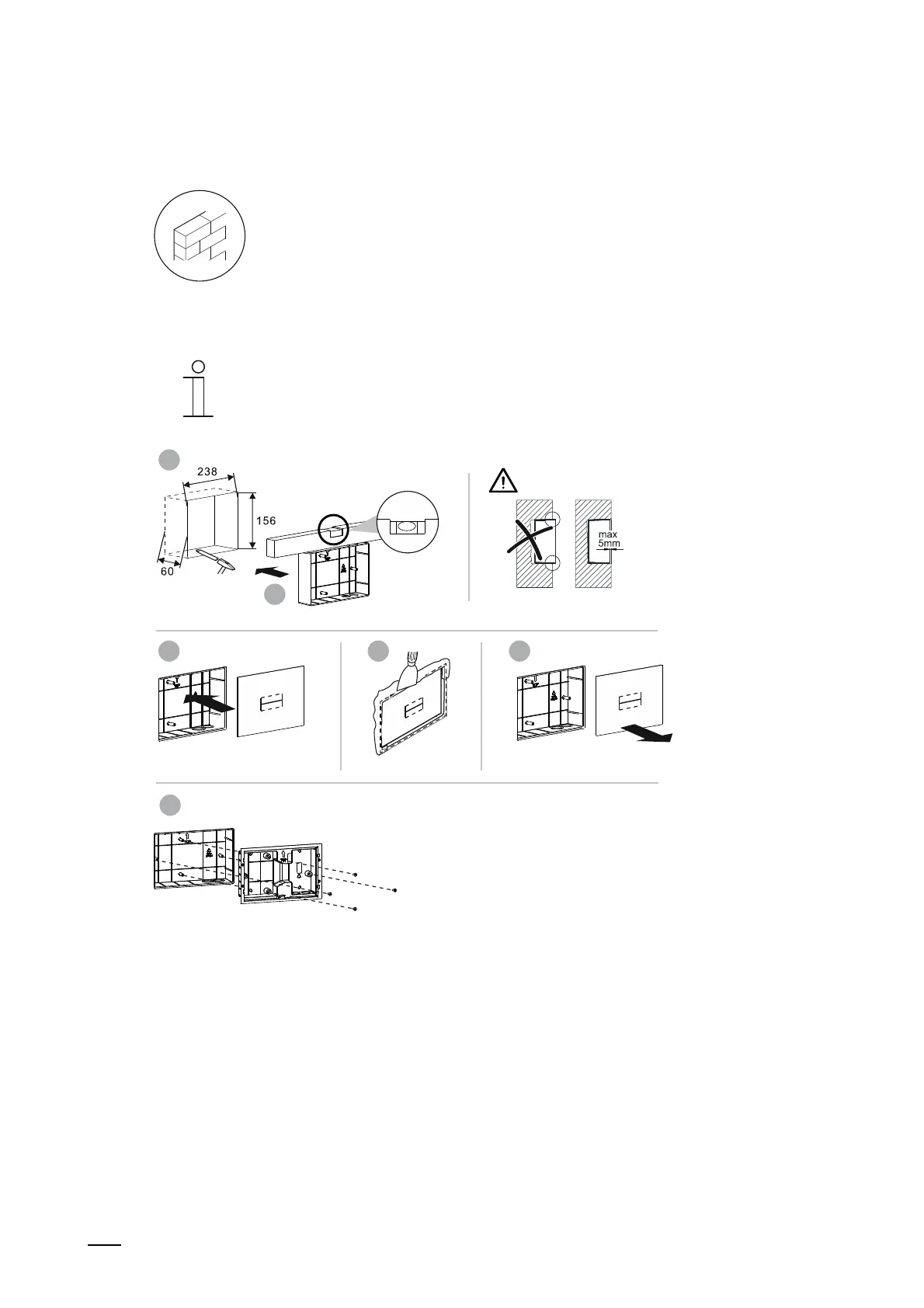

Fig. 8: Mounting in solid wall
Installation on the basis of the instructions on the enclosed drilling template:
Continue with “Electrical connection“ on page 38 and “Installation“ on page 39.

