Commissioning of the KNX Function via DCA (from ETS5)
Product manual 2CKA00xx73xxxxx
86
8.11 Editing communication objects
The available communication objects of the marked control elements (see work area) are listed
in the "Communication objects" area. They can here be selected and edited directly via the
ETS. The same applies to several applications (see library area).
Note
Detailed expert knowledge for understanding by means of KNX training is
assumed, especially with regard to the commissioning software ETS.

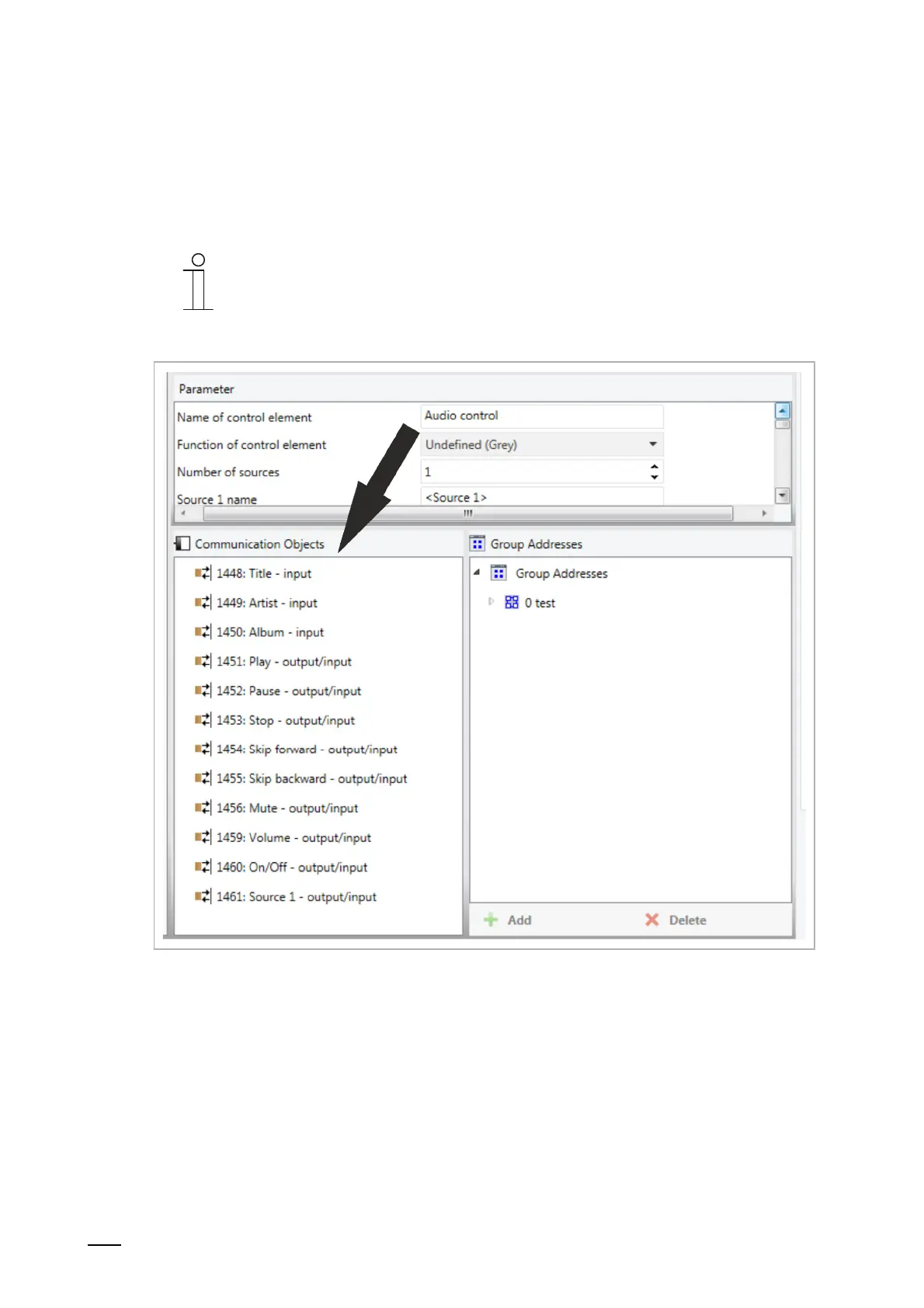

Fig. 27: Communication objects area
To establish the connection between a control element and a sequence, for example, you must
assign a group address to the control element in the ETS. Each control element has several
communication objects for this purpose (see ).
Allocating a group address to a control element:
1. Pull a group address onto a communication object with the left mouse button.
