Operation
Product manual 2CKA00xx73xxxxx
323
12.7.13 Terminal resistor
1

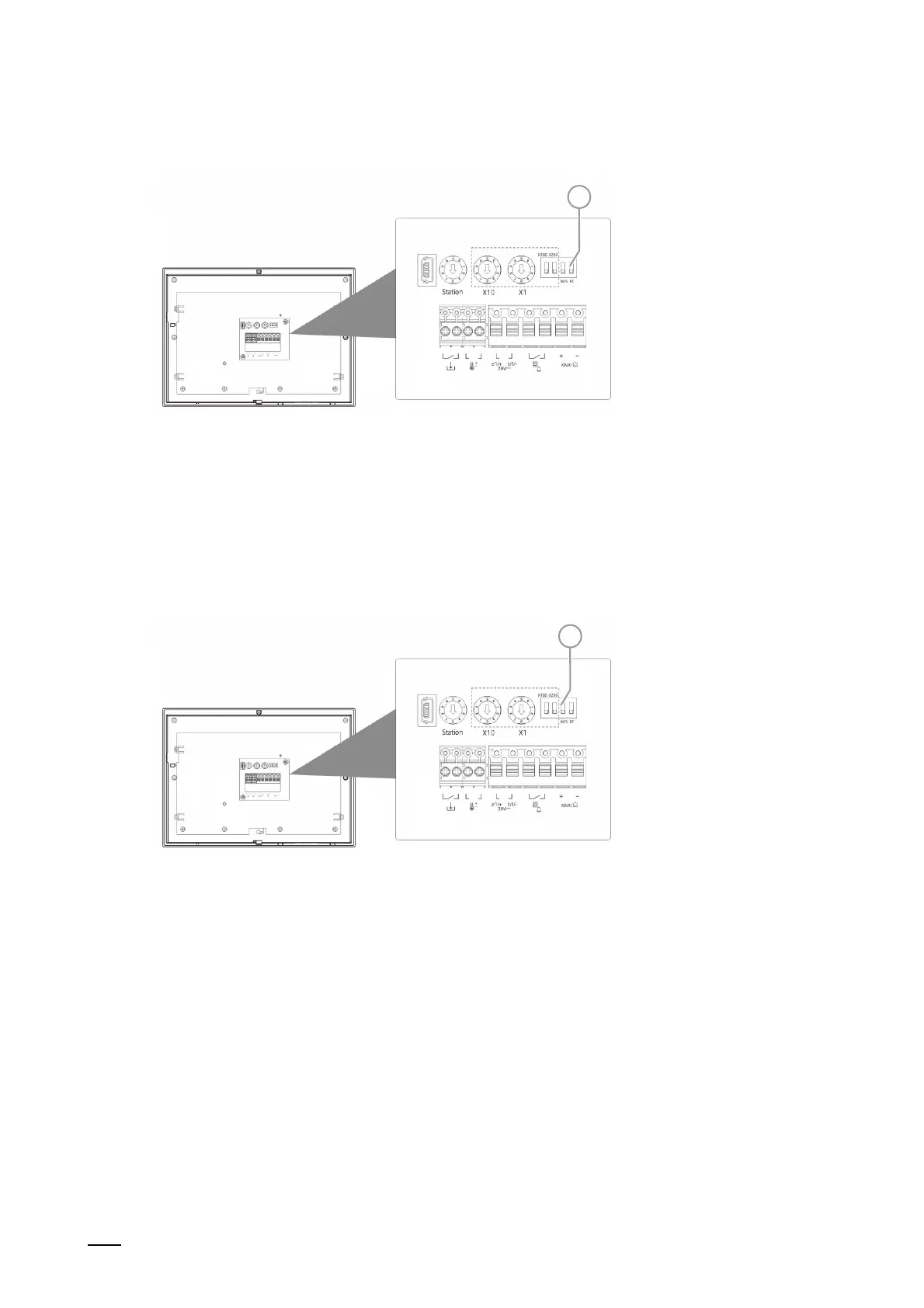

Fig. 67: Terminal resistor
In pure audio installations always set the terminal resistor [1] on "OFF". To do this, use switch 4
"RC".
In video installations or mixed audio and video installations set the terminal resistor for the last
devices of a branch on "ON".
12.7.14
Setting master/slave switches
2
Fig. 68: Master/slave switches
One station "Master" must always be in each apartment. All other indoor stations in the same
apartment must be "Slave".
Indoor station that is set up as "Master":
1. Set switch 3 "M/S" [2] on "ON".
All other indoor stations:
1. Set switch 3 "M/S" [2] on "OFF".
