Connection, installation / mounting

Product manual 2CKA00xx73xxxxx

│

6.7 Dismantling

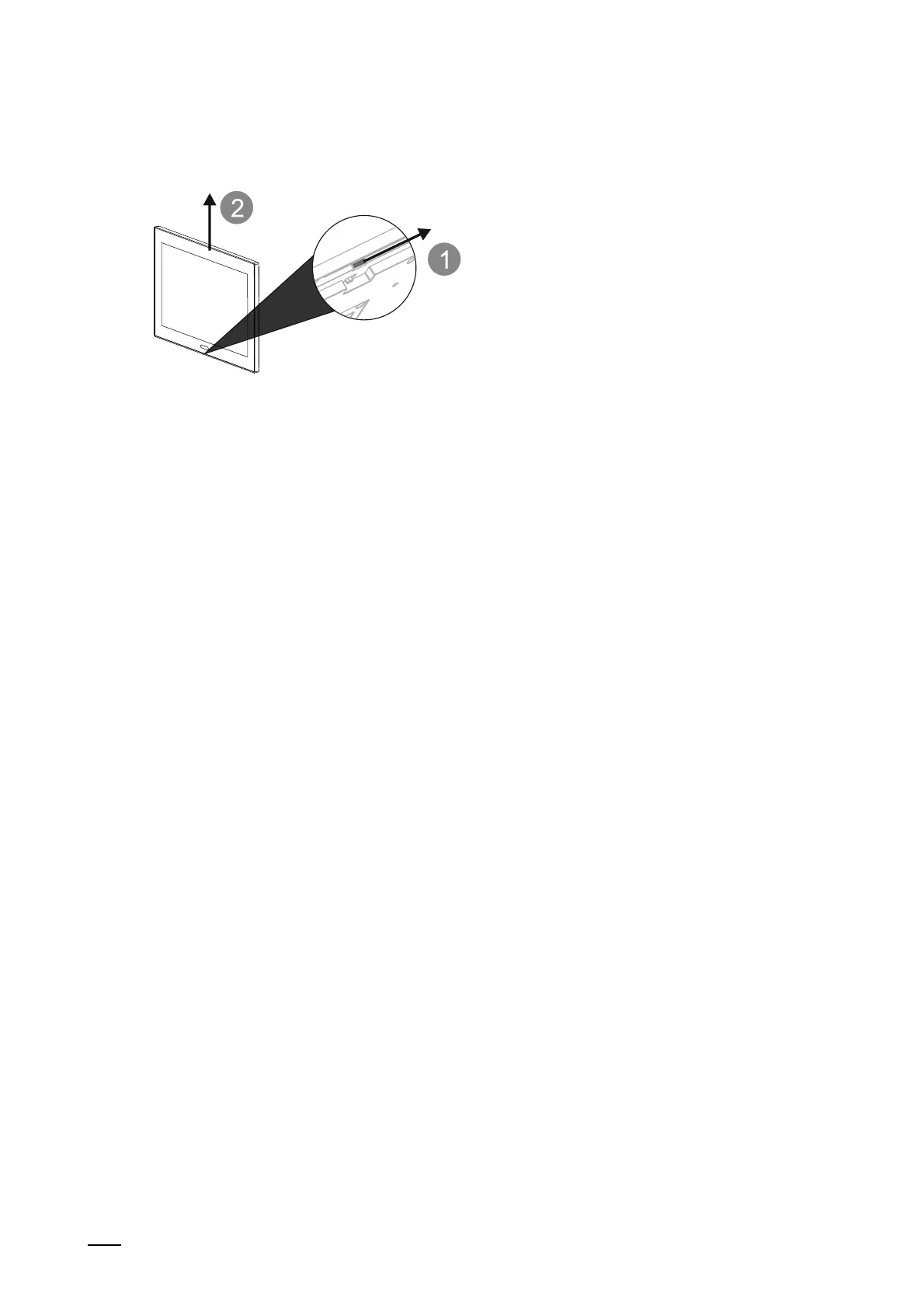

Fig. 17: Loosening the clamp of the device

1. Push the slider on the bottom side of the device to the right.

– The clamp is loosened.

2. Push the device upwards and then pull it off toward the front.


