R3132 Series Spectrum Analyzer Operation Manual
2.3.3 Measuring Adjacent Channel Leakage Power (ACP)
2-70
Performing ACP using Separate screen
22. Each time a sweep is performed, the trace of a carrier signal is displayed on the
upper screen, and the upper and lower adjacent channel traces are displayed on
each of the two lower screens. The ACP values for both adjacent channels are
displayed once every 5 sweeps.
When you press SINGLE, only five measurements are taken.

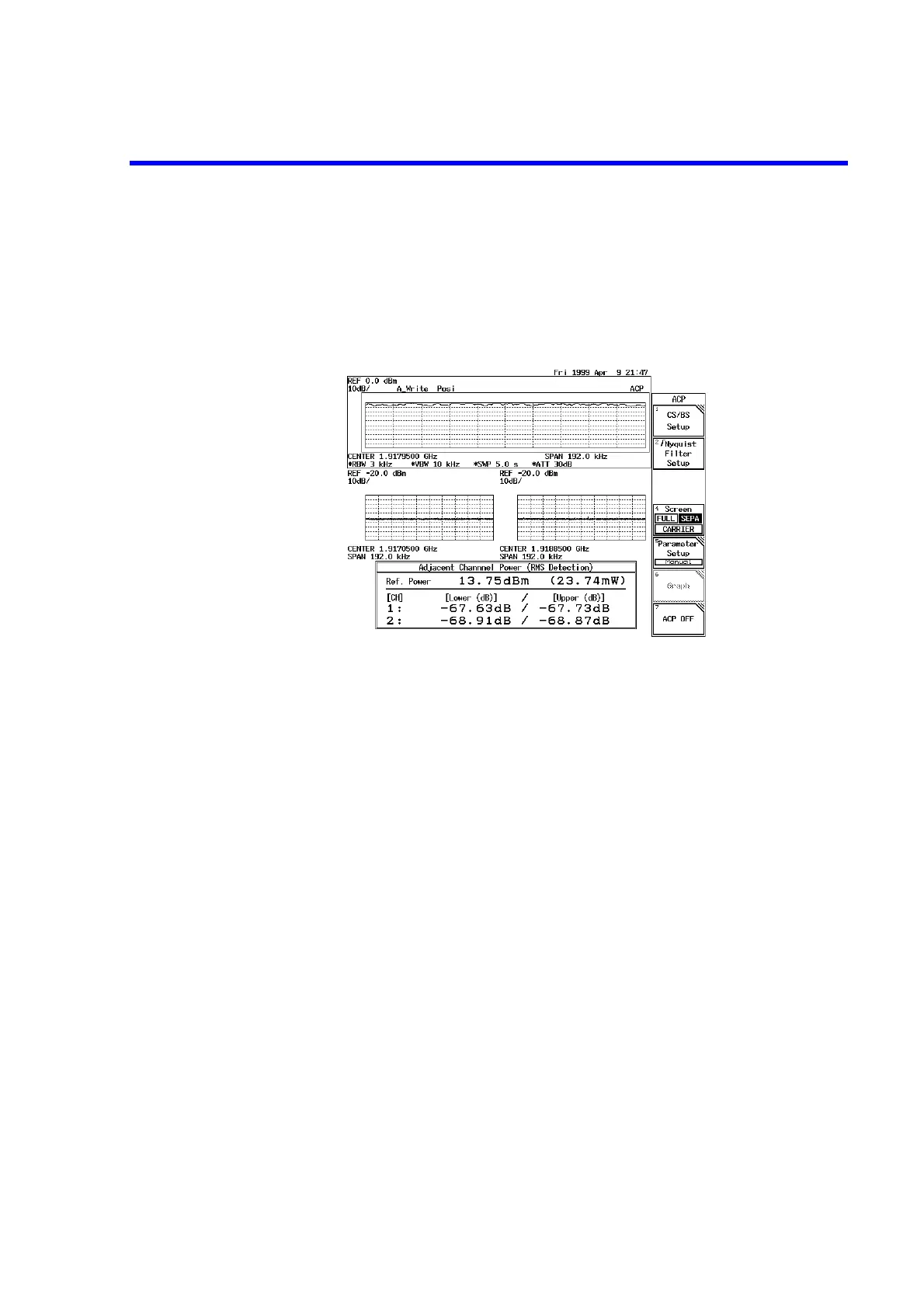

Figure 2-65 Measurement Result in ACP Separate Screen Mode
