R3132 Series Spectrum Analyzer Operation Manual
2.3.4 Measuring Burst Signals Using the Gated Sweep
2-73

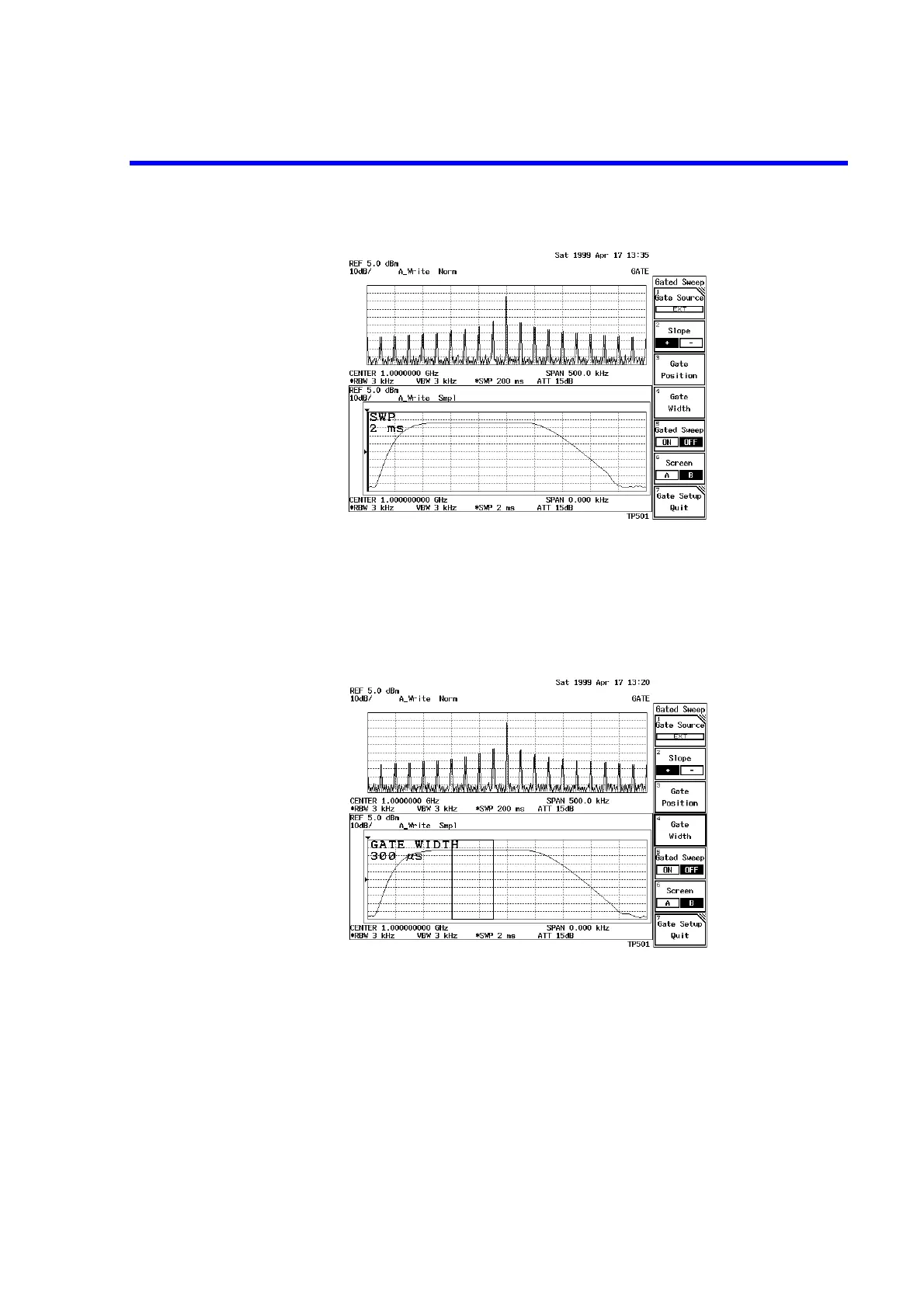

Figure 2-68 Trigger Setup
12. Press Gate Position, 0, ., 6 and kHz(ms).
The gate start position is set to 0.6 msec.
13. Press Gate Width, 0, ., 3 and kHz(ms).
A gate width of 0.3 msec is set.
Figure 2-69 Gate Setup
14. Press Gate Sweep ON/OFF(ON).
A spectrum without the effect caused by a burst signal will be displayed on the
upper part of the screen.
