ADVANTEST R3132 Series User Manual

R3132 Series Spectrum Analyzer Operation Manual
4.3.4 Interface connection
4-64
4.3.4 Interface connection

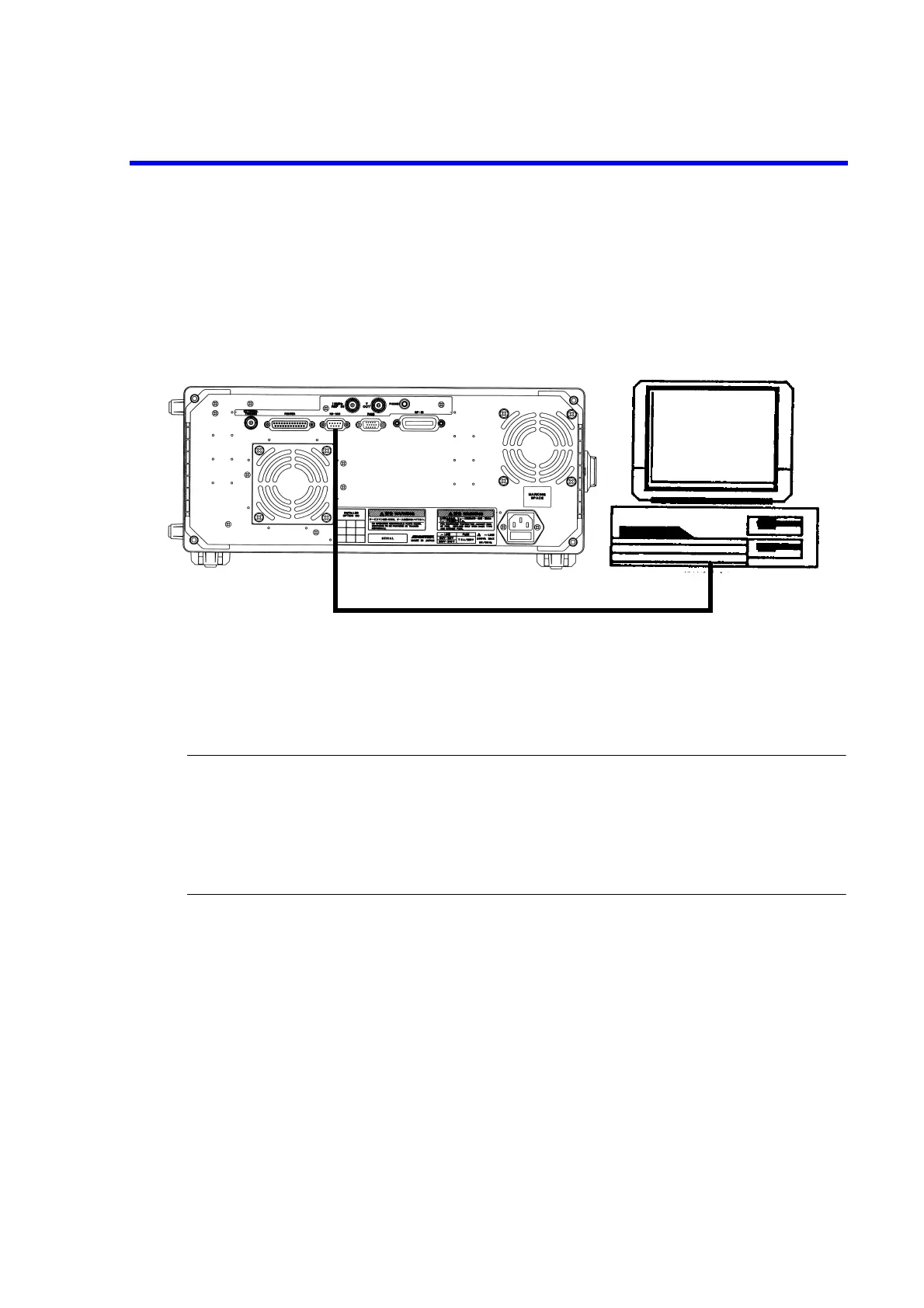

Figure 4-6 Connection Between the Controller and the Spectrum Analyzer
Although the spectrum analyzer uses only three pins, the controller side needs more connections for input
and output.
NOTE:
1. When you send or receive data using the cable connections shown in Figure 4-6, set XON/XOFF to valid
(ON).
2. DCD, DTR and DSR are not used in the spectrum analyzer. When you use CTS and RTS, use a cable with
cross-connection to connect the controller to the spectrum analyzer. Flow control is not performed using CTS
or RTS. Set XON/XOFF to valid (ON) to perform flow control.
RS-232 cable
Personal computer
Spectrum Analyzer rear panel
