2.3.5 Measuring Burst Signals in the Time Domain
2-78
Setting the trailing edge of a waveform
13. Press Trig Delay, 5, 7, 5 and Hz(µ
µµ
µs).
The waveform is displayed 575 µsec after the triggering point so you can observe
the trailing edge of the burst signal.

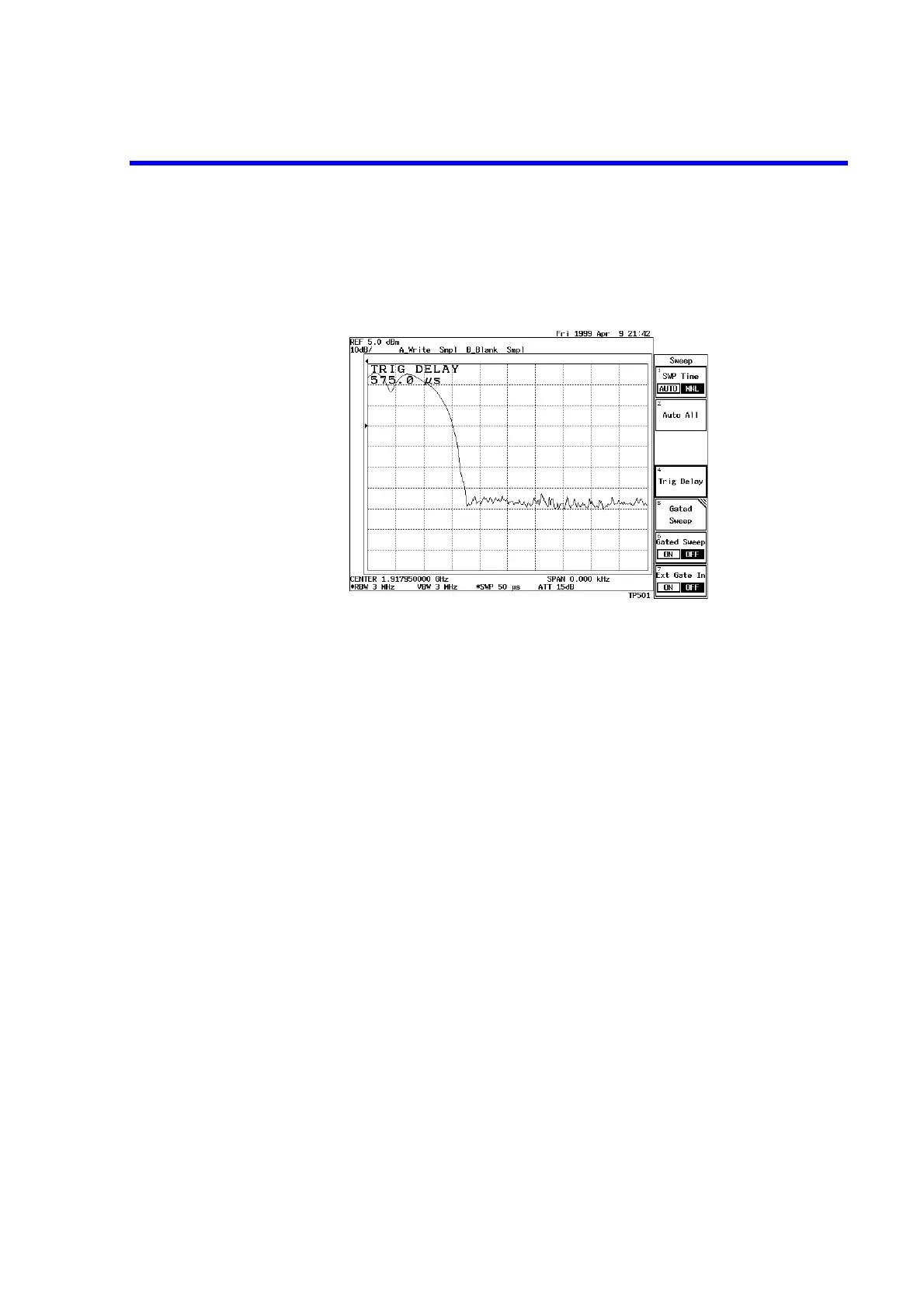

Figure 2-77 Measuring Burst Signal Trailing Edge
