R3132 Series Spectrum Analyzer Operation Manual
2.2.4 Measuring Frequency Using Counter
2-28

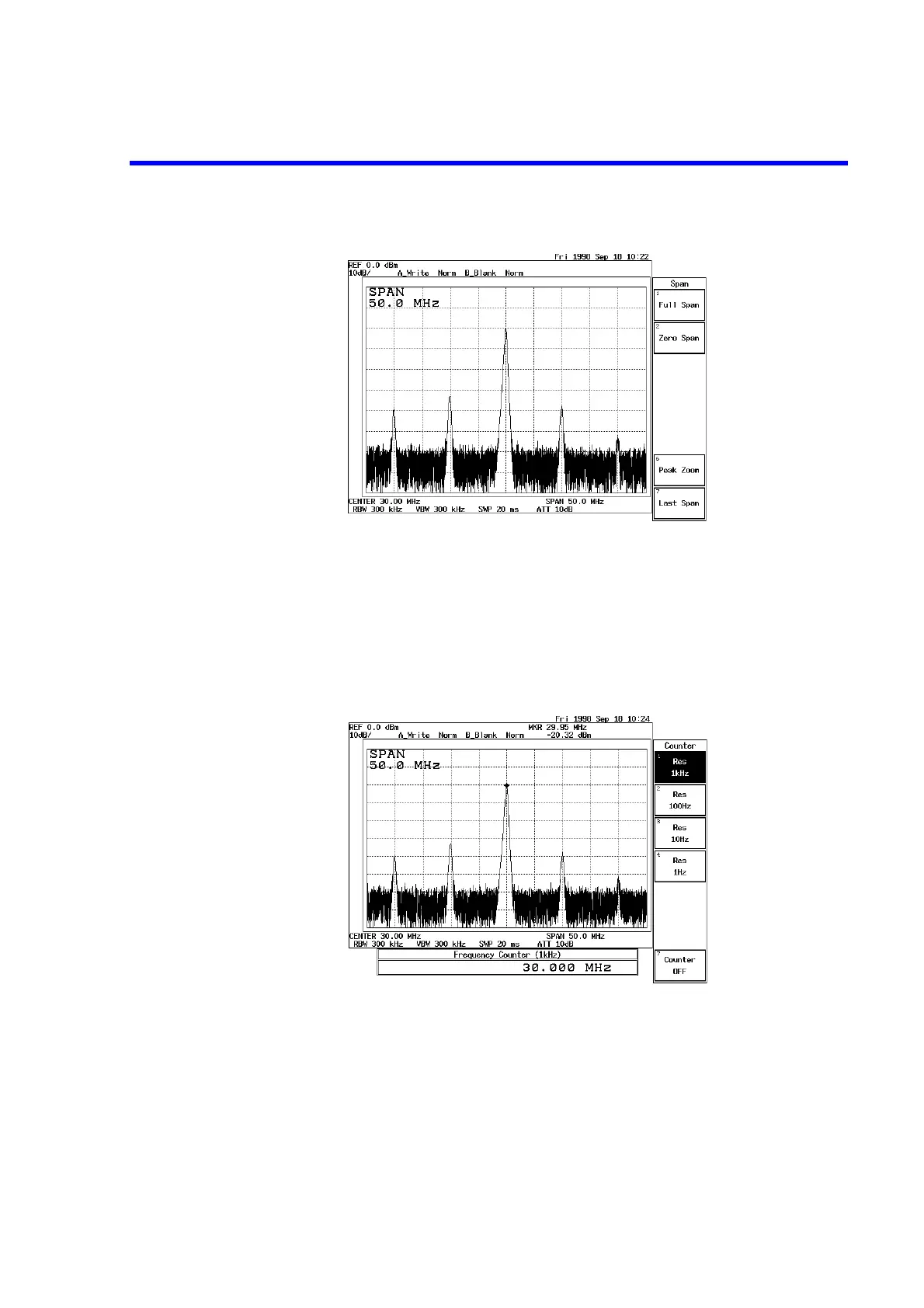

Figure 2-14 Measuring Settings Screen
Measuring frequency by counter
This measures the frequency using the counter function.
5. Press COUNTER.
The Counter menu (used for setting the frequency counter resolution) and the
Frequency Counter window are displayed. The default resolution is 1 kHz.
Figure 2-15 Frequency Counter Measurement (Resolution: 1 kHz)
To Next Page
