R3132 Series Spectrum Analyzer Operation Manual
5.3.3 Output Level Switching Accuracy
5-96

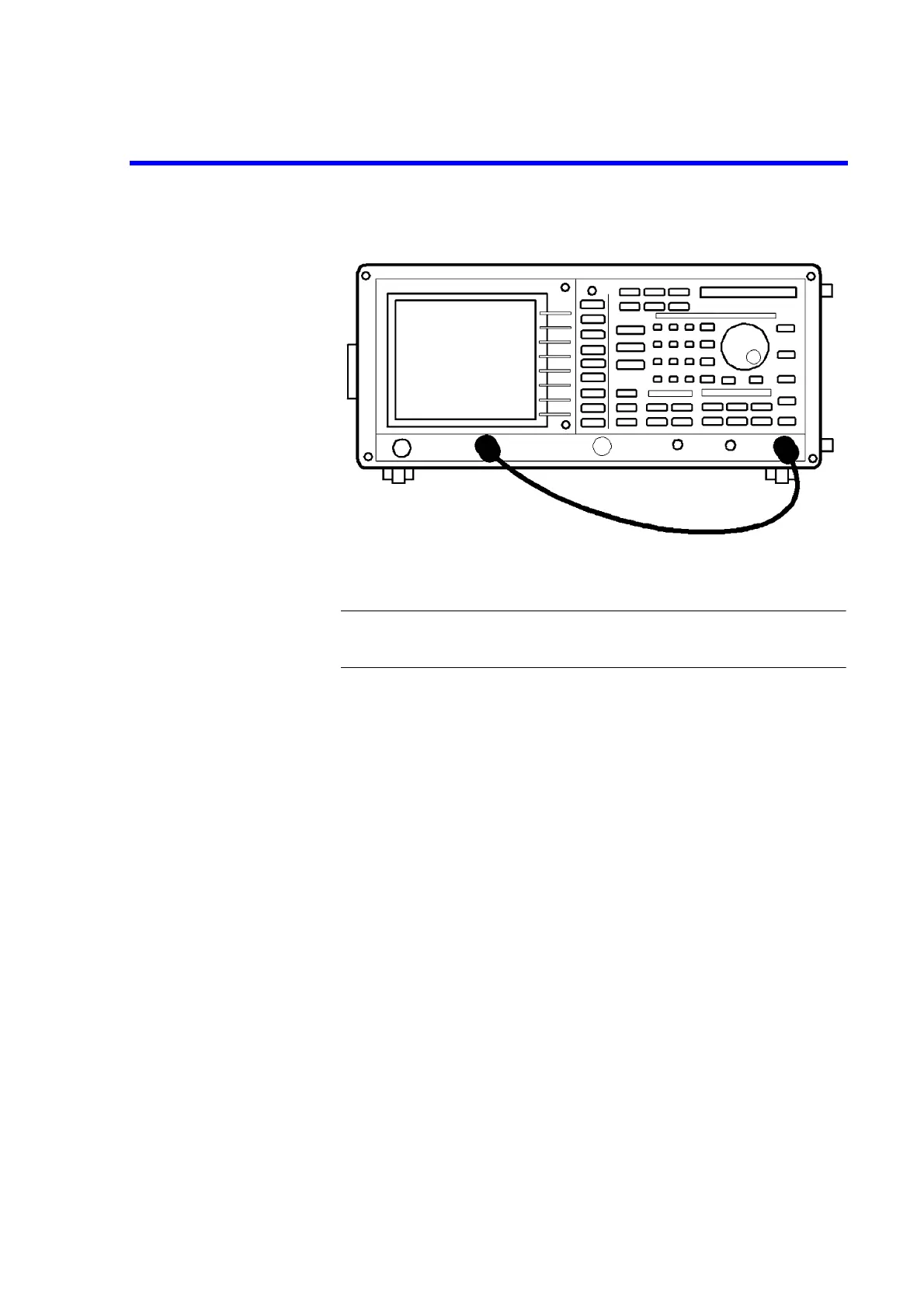

Figure 5-24 Setup of Output Switching Accuracy Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
4. On the R3132 series, set controls as follows:
Center Frequency: 30 MHz
Span: Zero
Reference level: -5 dB
dB/div: 1 dB/div
RBW: 30 kHz
VBW: 10 Hz
TG Output Level: -10 dBm
TG: ON
5. On the R3132 series, press as follows to set normalized mode to on.
TG and Execute Normalize.
Measuring the Tracking Generator Output Level
6. On the R3132 series, set TG output level to 0 dBm and reference level to 5 dBm.
7. On the R3132 series, press MKR to activate marker.
8. On the R3132 series, press SINGLE for single sweep.
9. Record the level of marker on the performance verification record sheet.
10. Repeat 6 through 9 each TG output level and reference level listed in Table 5-28.
