ADVANTEST R3132 Series User Manual

R3132 Series Spectrum Analyzer Operation Manual
5.3.6 TG Leakage
5-107
5.3.6 TG Leakage
Measure the leakage of TG signal by measuring R3132 series noise level.
TG output and RF input are terminated.
Specification:
R3132/62/72
≤ -100 dBm (Input attenuator 0 dB)
R3132N
≤ 7 dBµV (Input attenuator 0 dB)
Instruments Required:
Procedures:
Setting the measurement conditions

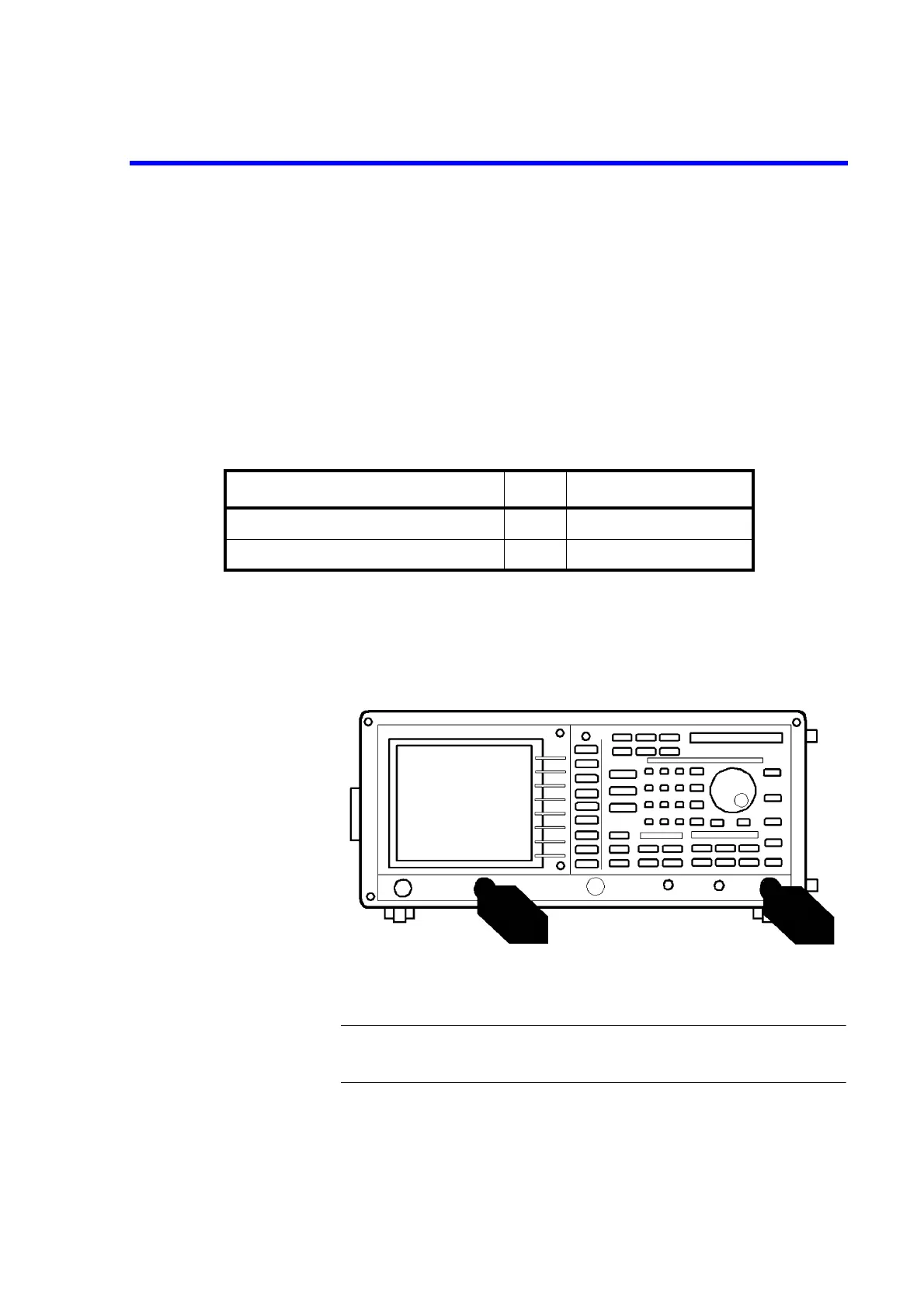

1. Connect the terminators as shown in Figure 5-27.
Figure 5-27 Setup of TG Leakage Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
Instruments Qty. Recommended Model
Terminator 50 Ω (for R3132, R3162) 1 RNA
Terminator 75 Ω (for R3132N) 1
