5.2.17 Frequency Span Accuracy
5-68
5.2.17 Frequency Span Accuracy
Set the signal frequency twice with the signal generator and measure the difference between signal fre-
quencies with the analyzer.
Check the span accuracy using the signal frequency difference measured with the delta marker function.
The R3132 series is phase-locked to the signal generator’s 10 MHz reference.
Specification:
±1% of the frequency span setting.
Instruments Required:
Procedures:
Setting the measurement conditions
1. Connect the signal generator as shown Figure 5-17.

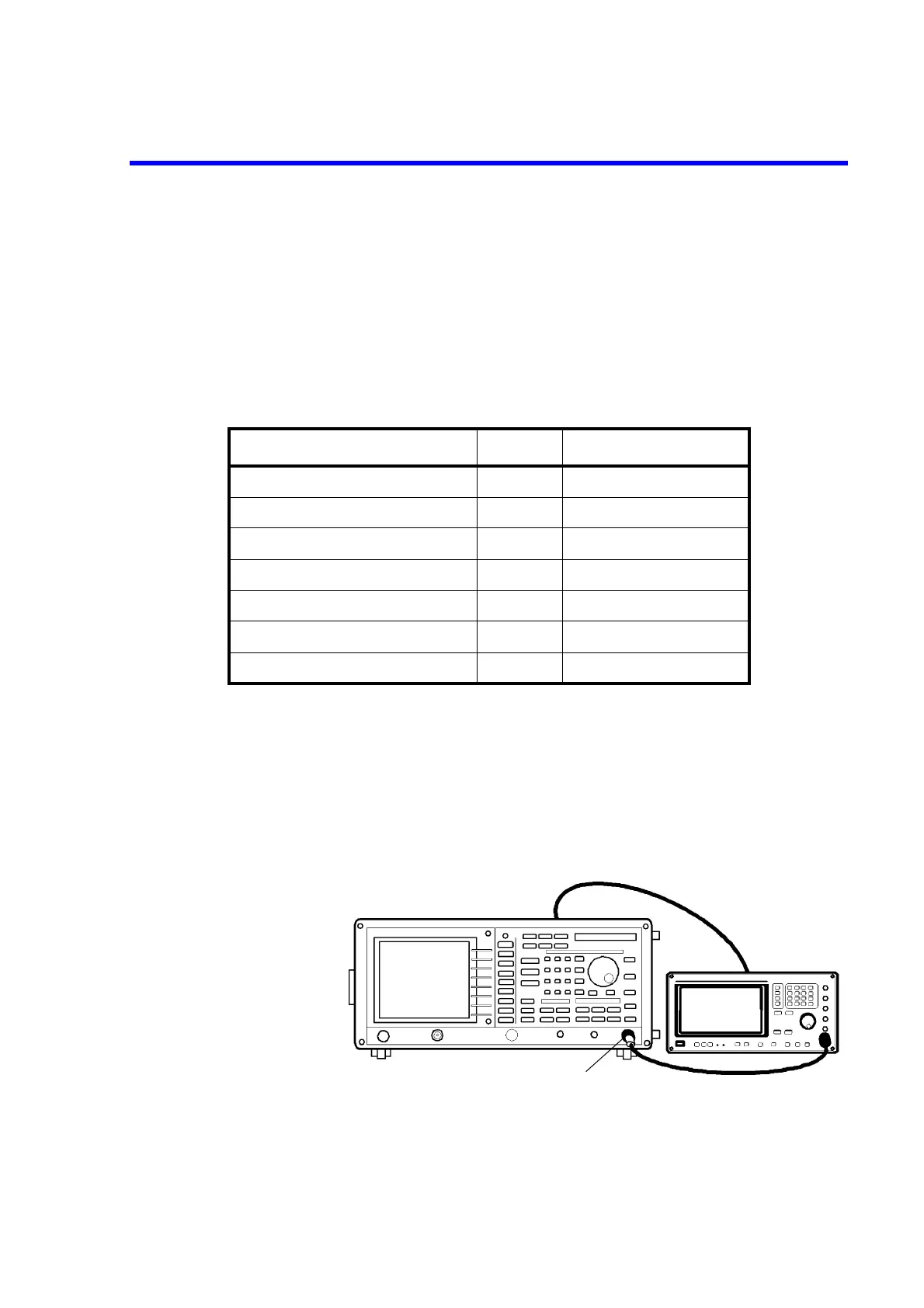

Figure 5-17 Setup of Frequency Span Accuracy Test
Instruments Qty. Recommended Model
Signal Generator 1 SMP04
Minimum Loss Pad 1
*1
HP11852B
RF Cable BNC(m)-BNC(m) 1 MI-09
RF Cable SMA(m)-SMA(m) 1 A01002
RF Cable K(m)-K(m) 1
*2
Adapter N(m)-SMA(f) 2
Adapter K(f)-K(f) 1
*2
*1 R3132N Only
*2 R3182 Only
Minimum
Loss Pad (*1)
*1 R3132N only
