R3132 Series Spectrum Analyzer Operation Manual
2.2.14 Entering User-definable Antenna Correction Data
2-50
1. Insert the floppy disk in the disk drive.
2. Press SHIFT and RECALL(SAVE).
The Save menu and file list are displayed.
3. Press Device RAM/FD to select FD.
The floppy disk is selected as the destination for the data table.
4. Press Save Item.
The Save Item menu used for selecting data is displayed
5. Set Ant Corr to ON in the Save Item menu (do not turn any other settings on).
6. Press Save Item.
The empty correction data table is saved to the floppy disk.
7. Specify the file, and press Save.
This copies the empty correction data table to the floppy disk.
Editing the correction data table
The correction data table can be edited using a personal computer.
8. Open the data in the folder SVRCL on the floppy disk.
9.
Add the data
for frequency
(Hz) and correction (dB) after the row <ANT
CORR>.

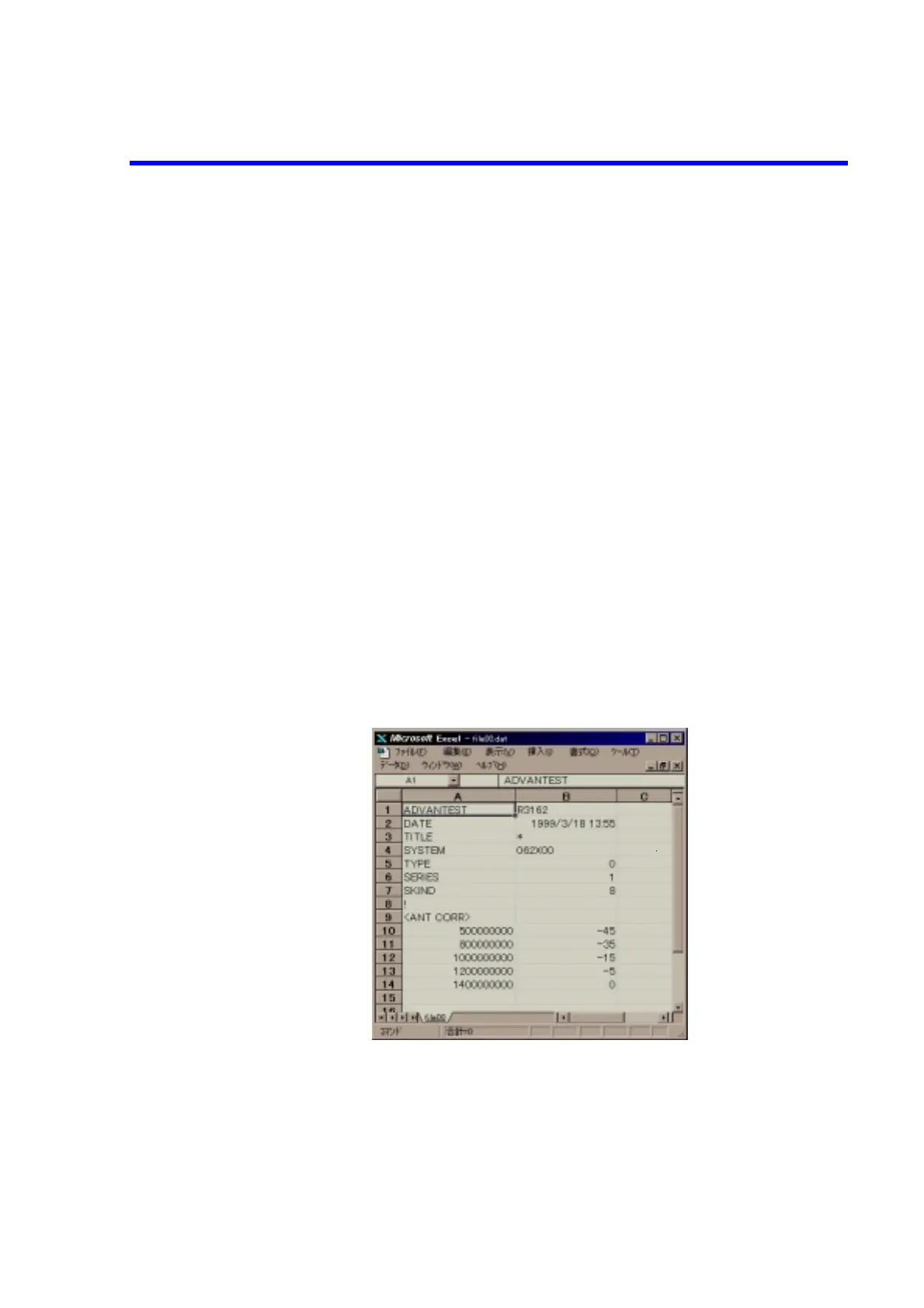

Figure 2-43 Editing the Correction Data Table
10. Save the data to the floppy disk in text data format.
Importing the correction data table
This reads the edited correction data table into the spectrum analyzer.
