R3132 Series Spectrum Analyzer Operation Manual
5.3 Tracking Generator Performance Verification Procedure
5-90
5.3 Tracking Generator Performance Verification Procedure
5.3.1 Absolute Output Level Accuracy
A calibrated power sensor is connected to the tracking generator output to measure the power level at 30
MHz and output level -10 dBm.
Specification:
R3132/62/72
-10 dBm ±0.5 dB at Center 30 MHz, output level -10 dBm.
R3132N
95 dBµV ±0.5 dB at Center 30 MHz, output level 95 dBµV.
Instruments Required:
Procedures:
Setting the measurement conditions
1. On the power meter, perform the zeroing and calibration with power sensor.
2. On the power meter, set the unit into dBm mode, after calibration has done.
3. Connect the equipment as shown Figure 5-22.

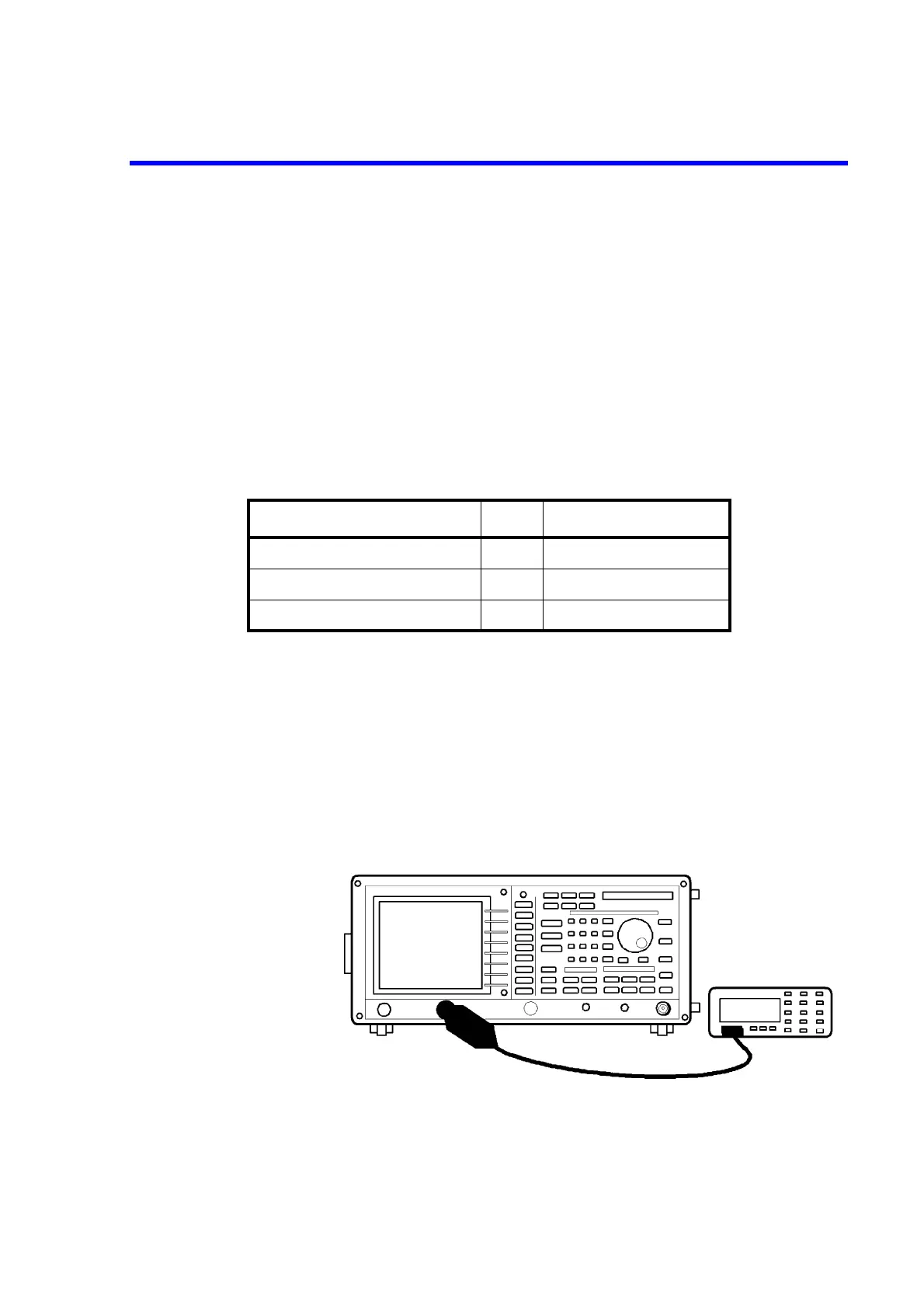

Figure 5-22 Setup of Absolute Output Level Accuracy Test
Instruments Qty. Recommended Model
Power Meter 1 NRVS
Power Sensor 1 NRVS
Power Sensor 75 Ω 1* NRV-Z3
* R3132N Only
