2.3.4 Measuring Burst Signals Using the Gated Sweep
2-72
7. Press LEVEL, 5 and GHz(+dBm).
The reference level is set to +5 dBm.
8. Press BW, RBW AUTO/MNL(MNL), 3 and kHz.
An RBW of 3 kHz is set.
9. Press SWEEP, SWP Time AUTO/MNL(MNL), 2, 0, 0 and kHz(ms) .
Sweep time is set to 200 ms .
Setting the gated sweep
This sets the conditions of the gated sweep to bring the gated sweep into sync with the
input signal.
10. Press SWEEP and Gated Sweep.
The Gated Sweep menu is displayed, and the gated sweep mode is set.
The upper screen displays the spectrum and the lower screen displays the wave-
form in the time domain in Split screen mode.

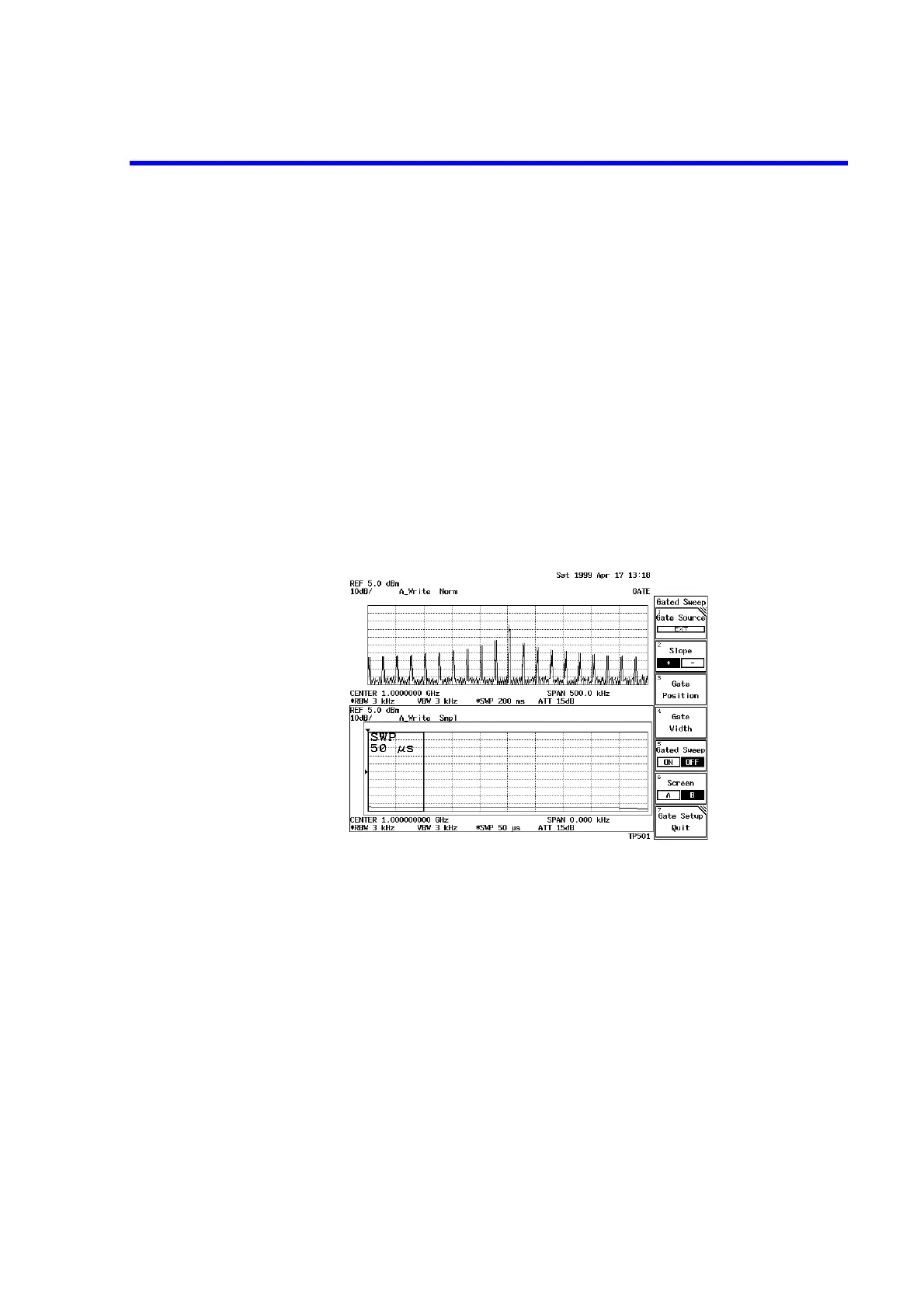

Figure 2-67 Burst Signal Displayed in Split Screen Mode
11. Press 2 and kHz(ms).
A sweep time of 2 msec for the lower screen is set.
