2.2.2 Displaying Spectrums and Operating the Markers
2-22
14. Press 2, 0, MHz(-dBm).
A reference level of -20 dBm is set.

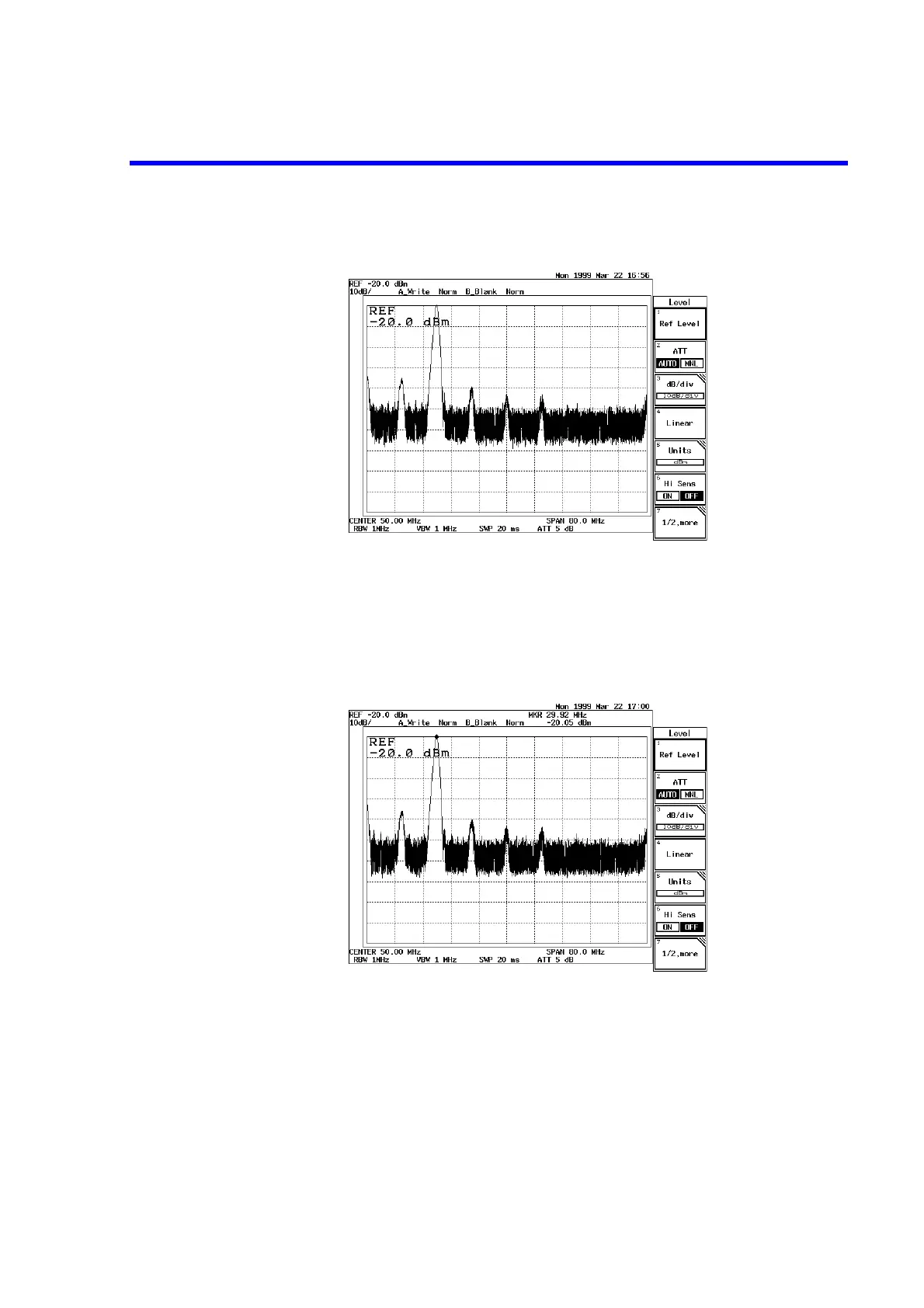

Figure 2-9 Measuring Settings Screen
Displaying a marker on the trace peak
15. Press PK SRCH.
The marker is displayed on the trace peak, and the marker frequency (approxi-
mately 30 MHz) and level (approximately -20 dBm) are listed in the marker area.
Figure 2-10 Peak Search Display Screen
Using the delta marker
16. Press MKR.
The Marker menu used with the marker function is displayed.
17. Press Delta.
The delta marker is displayed on the trace peak, and the differences between the
marker and delta marker frequency and level are listed in the marker area.
