ADVANTEST R3132 Series User Manual

R3132 Series Spectrum Analyzer Operation Manual
2.3.5 Measuring Burst Signals in the Time Domain
2-77

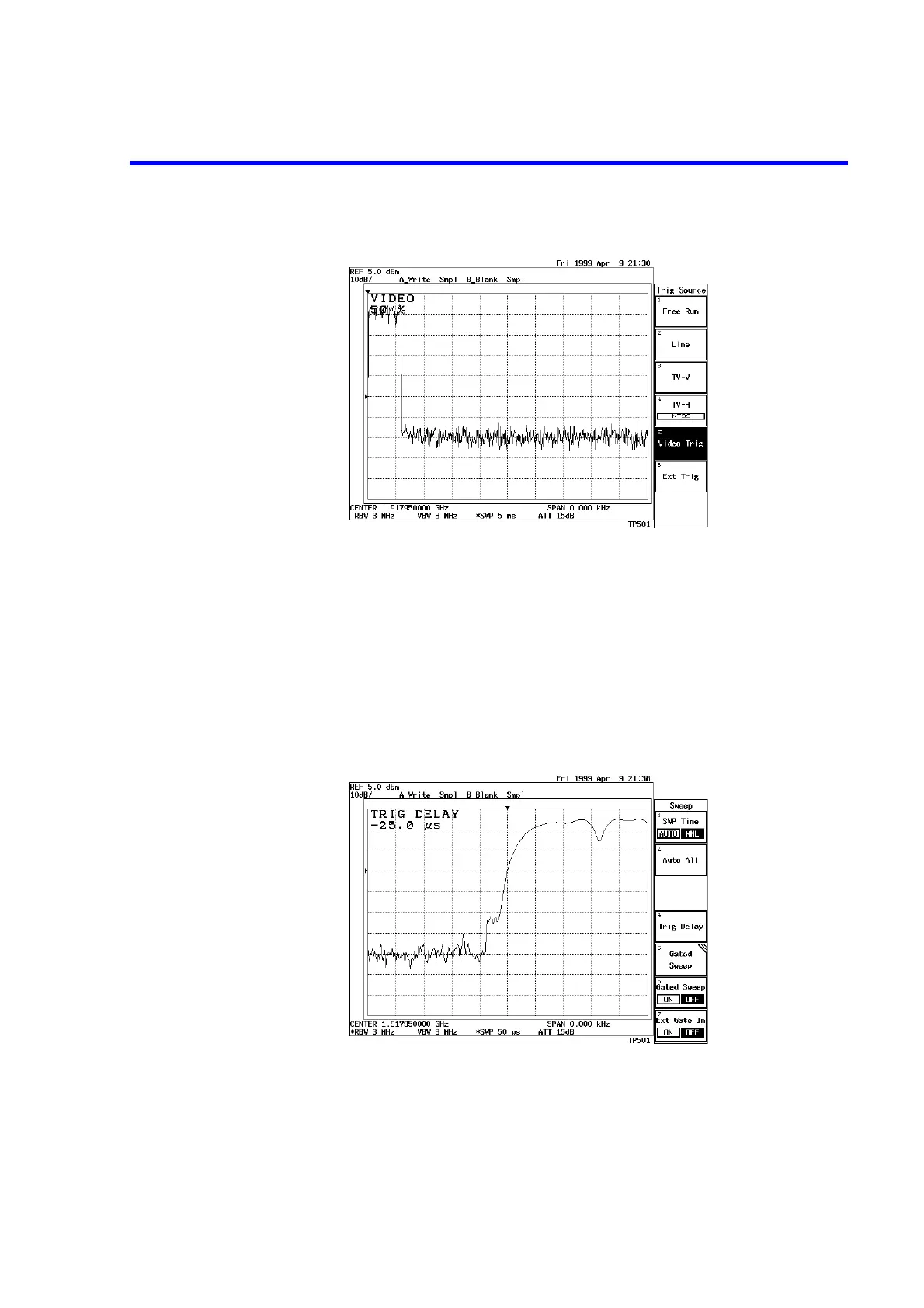

Figure 2-75 Burst Signal in Synchronization with the Trigger Signal
10. Adjusts the trigger level to 70% using the knob.
Setting the leading edge of a waveform
11. Press SWEEP, 5, 0 and Hz(µ
µµ
µs).
A Sweep time of 50 µsec is set.
12. Press Trig Delay, -, 2, 5 and Hz(µ
µµ
µs).
The waveform is displayed 25 µsec before the triggering point so you can
observe the leading edge of the burst signal.
Figure 2-76 Measuring Burst Signal Leading Edge
