R3132 Series Spectrum Analyzer Operation Manual
2.3.10 FM Demodulation Function (OPT73)
2-101

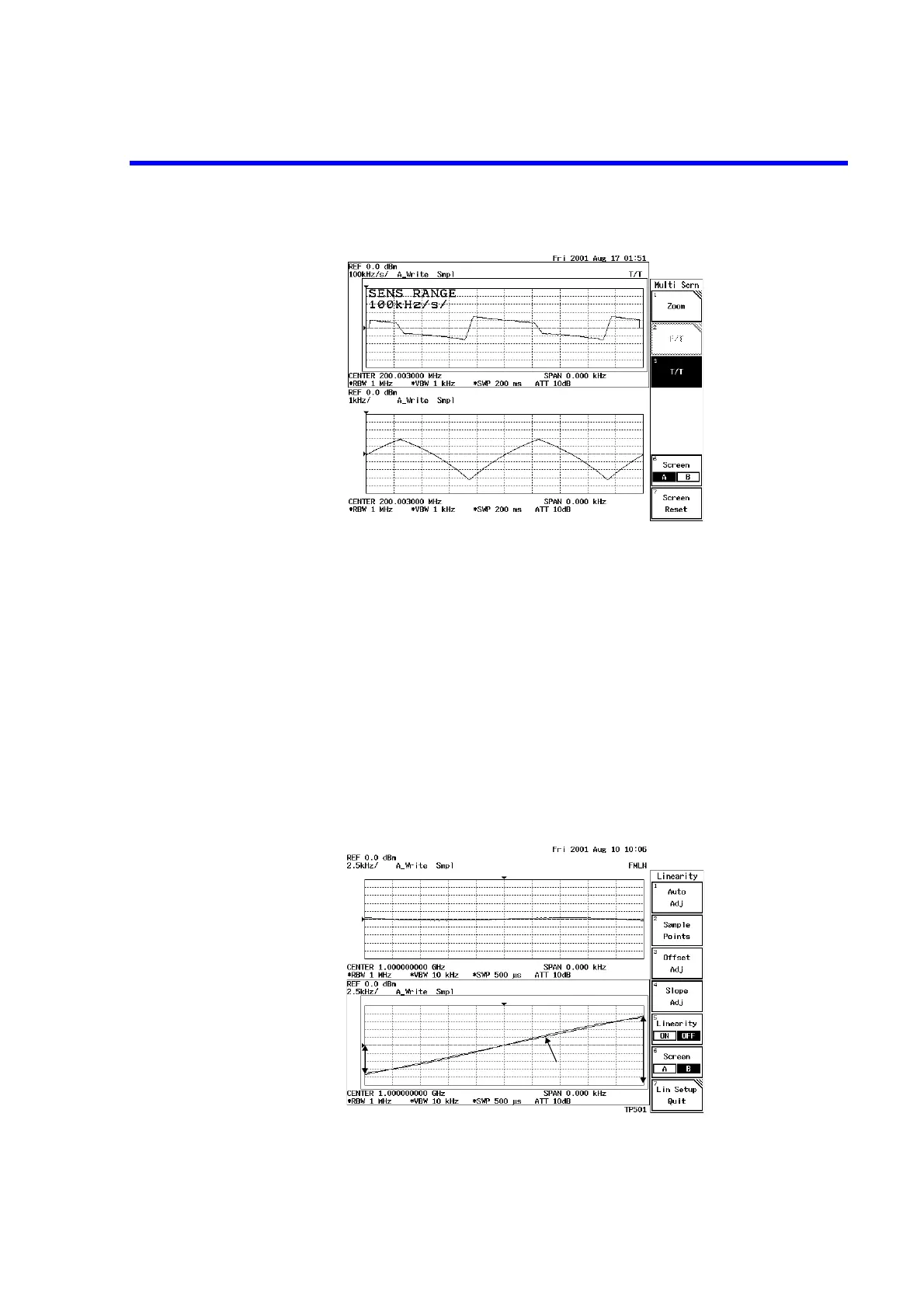

Figure 2-102 Simultaneously Displaying Sensitivity and Demodulation
17. Press Screen Reset.
The screen display is switched to Full Screen Mode.
18. Press UTILITY and Sensitivity OFF.
The sensitivity display function is turned off.
Linearity Measurement
The linearity measurement displays the difference between the trace and the reference
line. The reference line can be set in two ways: one is to manually set with Offset and
Slope, and the other is to automatically set with the Auto Adj function. In addition, if
the measuring window is used, Offset and Slope are automatically adjusted to the val-
ues specified in the measuring window.
Figure 2-103 Setting Offset and Slope Used for Linearity Measurements
Offset
Reference
Line
Slope
