R3132 Series Spectrum Analyzer Operation Manual
5.2.1 Frequency Reference Source Output Accuracy
5-8

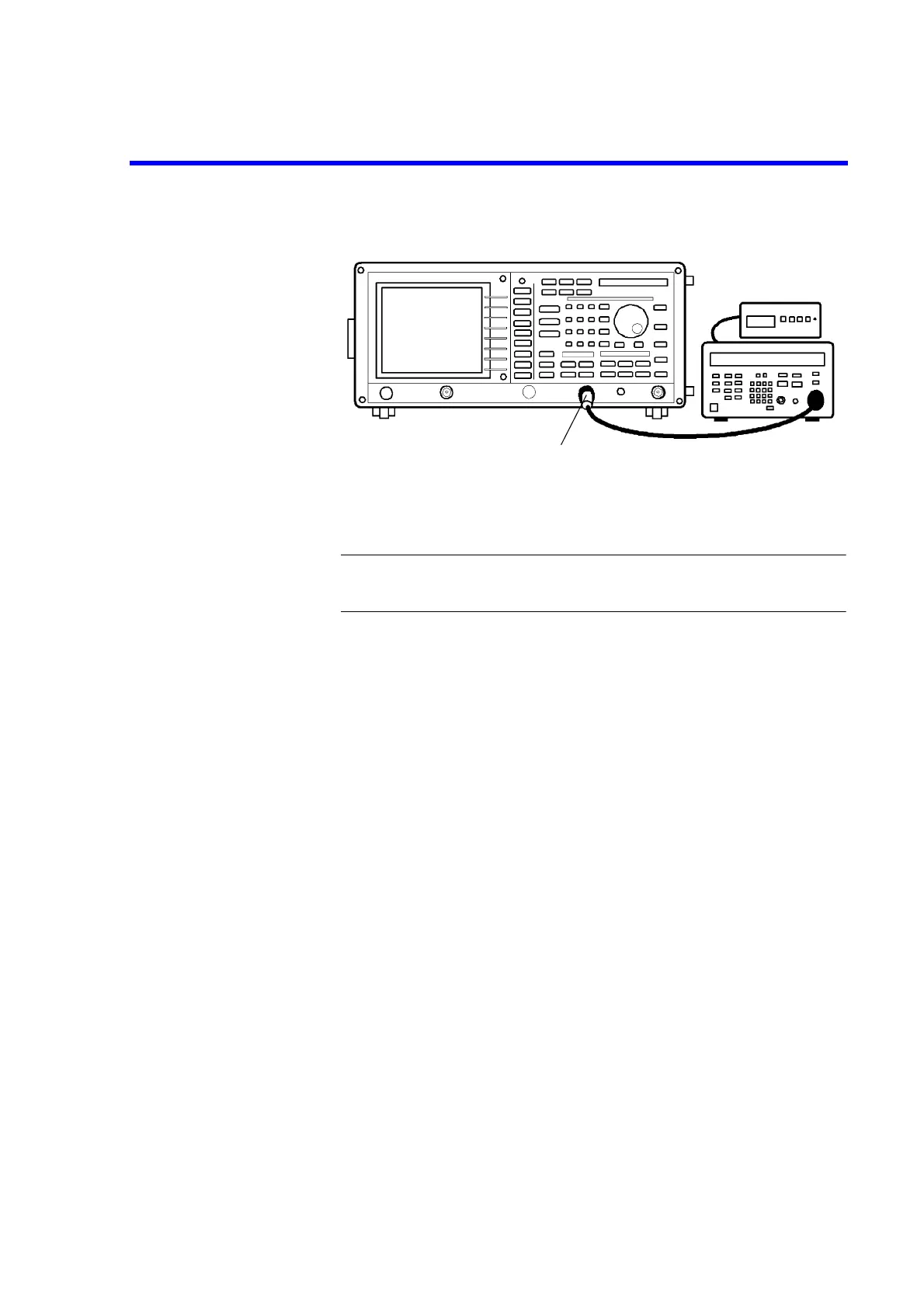

Figure 5-1 Setup of Frequency Reference Source Accuracy Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
Setting the frequency counter
2. Set the R5372 controls as follows.
Input: A
Resolution: 0.1 Hz
10 MHz Reference: External
Initialization
3. Press SHIFT, CONFIG(PRESET).
Measurement the frequency reference accuracy
4. Wait for the frequency counter reading on the performance verification check
sheet.
Minimum
Loss Pad (*1)
*1 R3132N only
