R3132 Series Spectrum Analyzer Operation Manual
2.3.7 Measurements Using TG (OPT74)
2-86
7. Press LEVEL, dB/div and 2dB/div.
The amplitude scale (vertical axis) graduation is set to 2dB/div.
8. Press TG, TG Level, 5 and MHz(-dBm).
The output level of the tracking generator is set to -5 dBm.
9. Press TG and Execute Normalize.
The normalization calibration is performed.

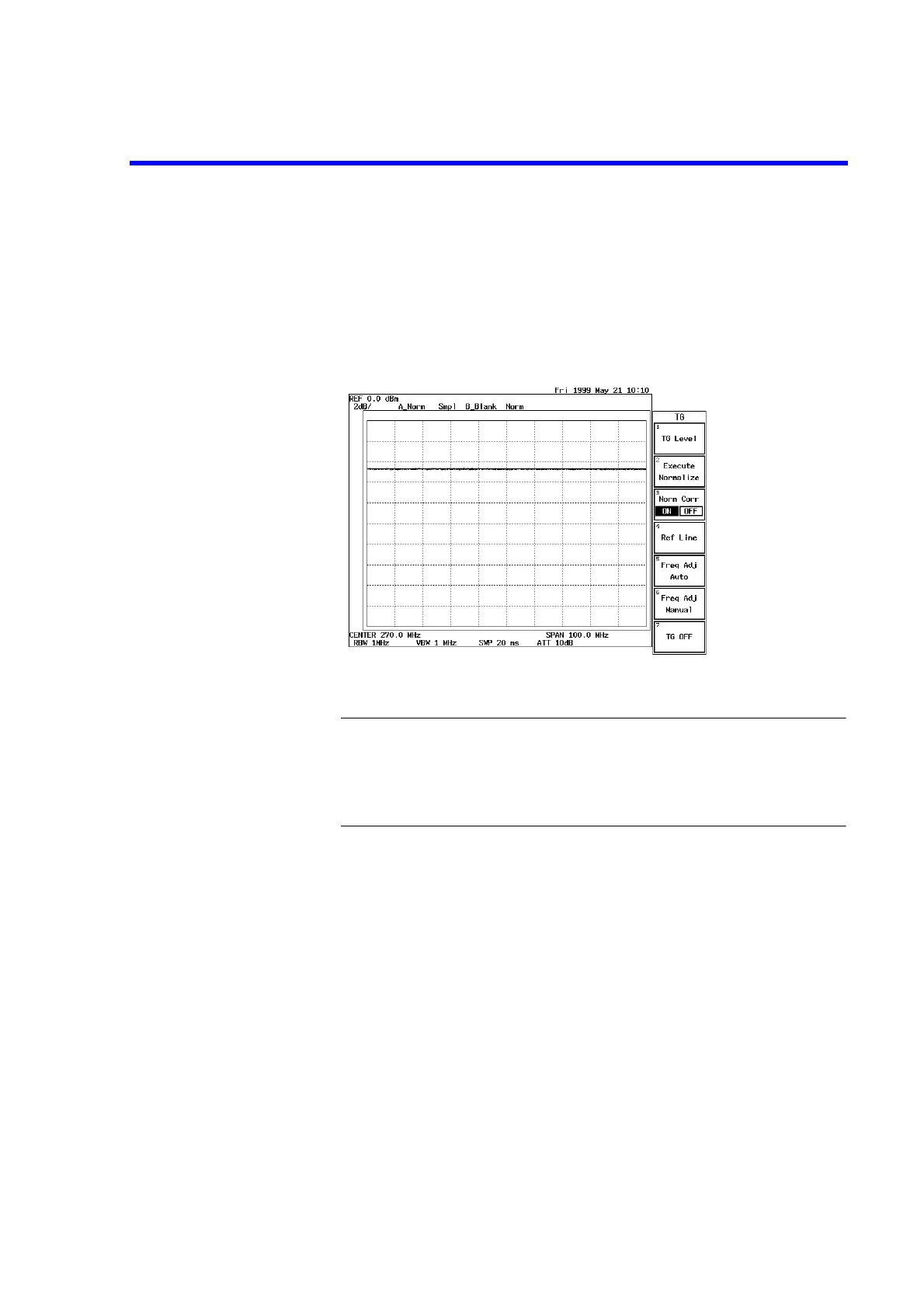

Figure 2-86 Measurement Screen after a Normalization Calibration
NOTE: When you change center frequency, frequency span, reference level, level
indication scale and so on after executing a normalization calibration, sub-
sequent normalization results will be incorrect.
Be sure to re-execute the normalization operation if you change any of these
settings.
