2.3.5 Measuring Burst Signals in the Time Domain
2-76
7. Press LEVEL, 5 and GHz(+dBm).
The reference level is set to +5 dBm.

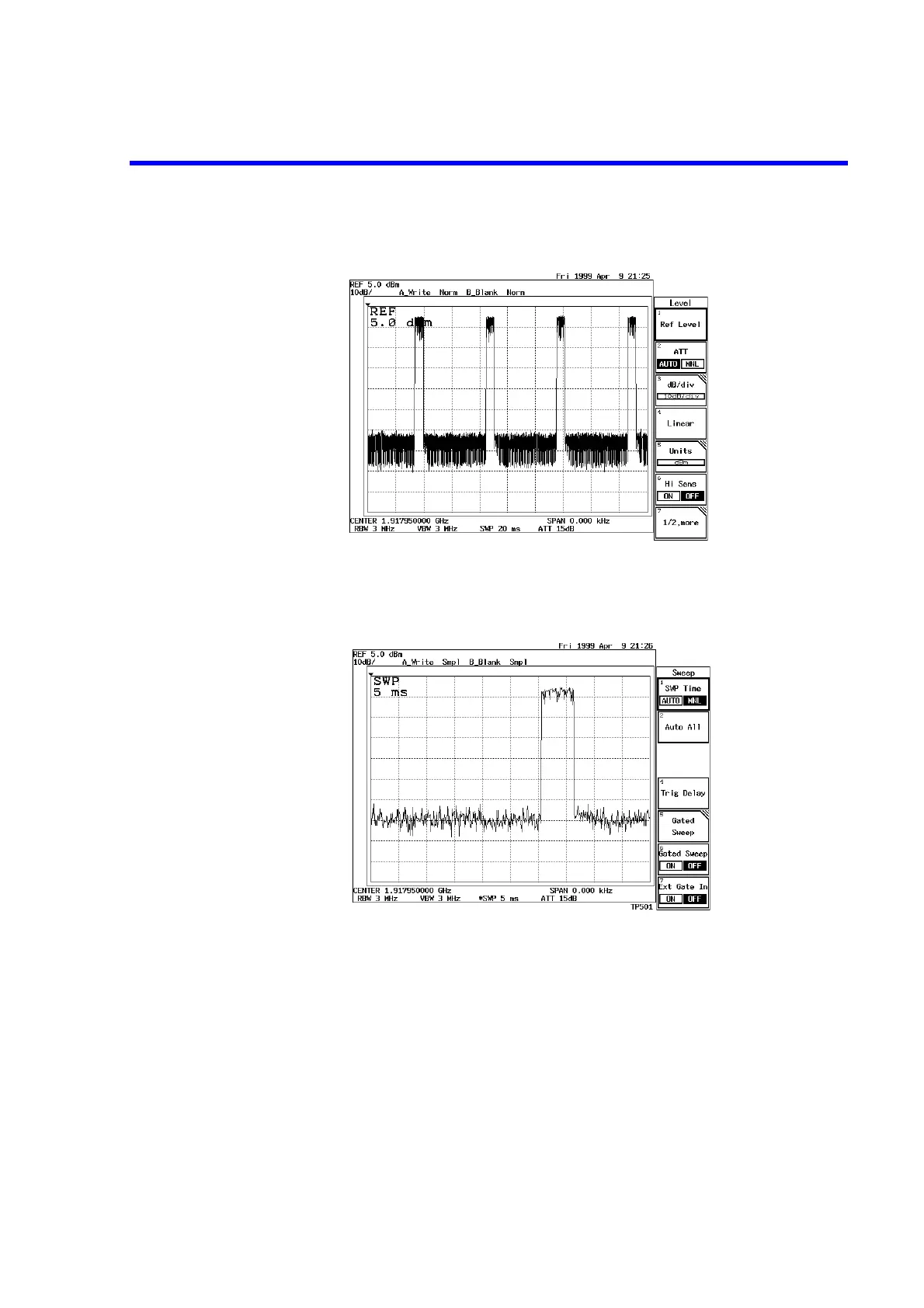

Figure 2-73 Burst Signal in the Time Domain
8. Press SWEEP, SWP Time AUTO/MNL(MNL), 5 and kHz(ms).
A sweep time of 5 msec is set.
Figure 2-74 Burst Signal in the Time Domain
Setting the video trigger
9. Press TRIG, Trig Source and Video Trig.
Video is selected.
The trigger level mark (→) is displayed on the left edge vertical axis.
