5.3.5 Non Harmonic Distortion
5-105
5.3.5 Non Harmonic Distortion
Measure the level difference between fundamental signal and distortion signal except for second harmonic
using spectrum analyzer.
Specification:
≤-30 dBc (output level -10 dBm)
Instruments Required:
Procedures:
Setting the measurement conditions
1. Connect the R3132 series and spectrum analyzer as shown in Figure 5-26.

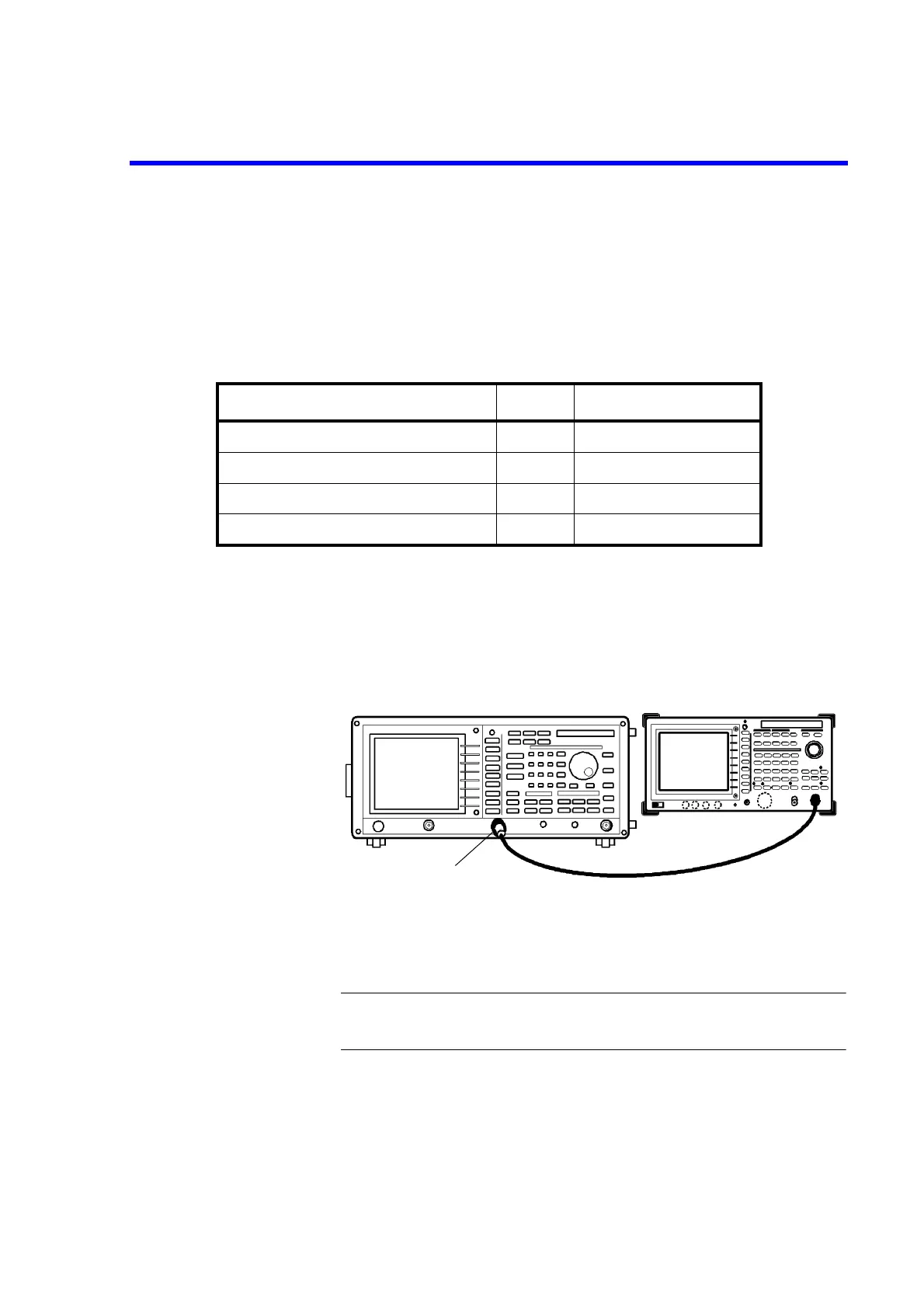

Figure 5-26 Setup of Non Harmonic Distortion Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
Instruments Qty. Recommended Model
Spectrum Analyze 1 R3267
RF Cable SMA(m)-SMA(m)x 1 A01002
Minimum Loss Pad 1* HP11852B
Adapter N(m)-SMA(f) 2
* R3132N Only
Minimum
Loss Pad (*1)
*1 R3132N only
