R3132 Series Spectrum Analyzer Operation Manual
2.3.4 Measuring Burst Signals Using the Gated Sweep
2-74

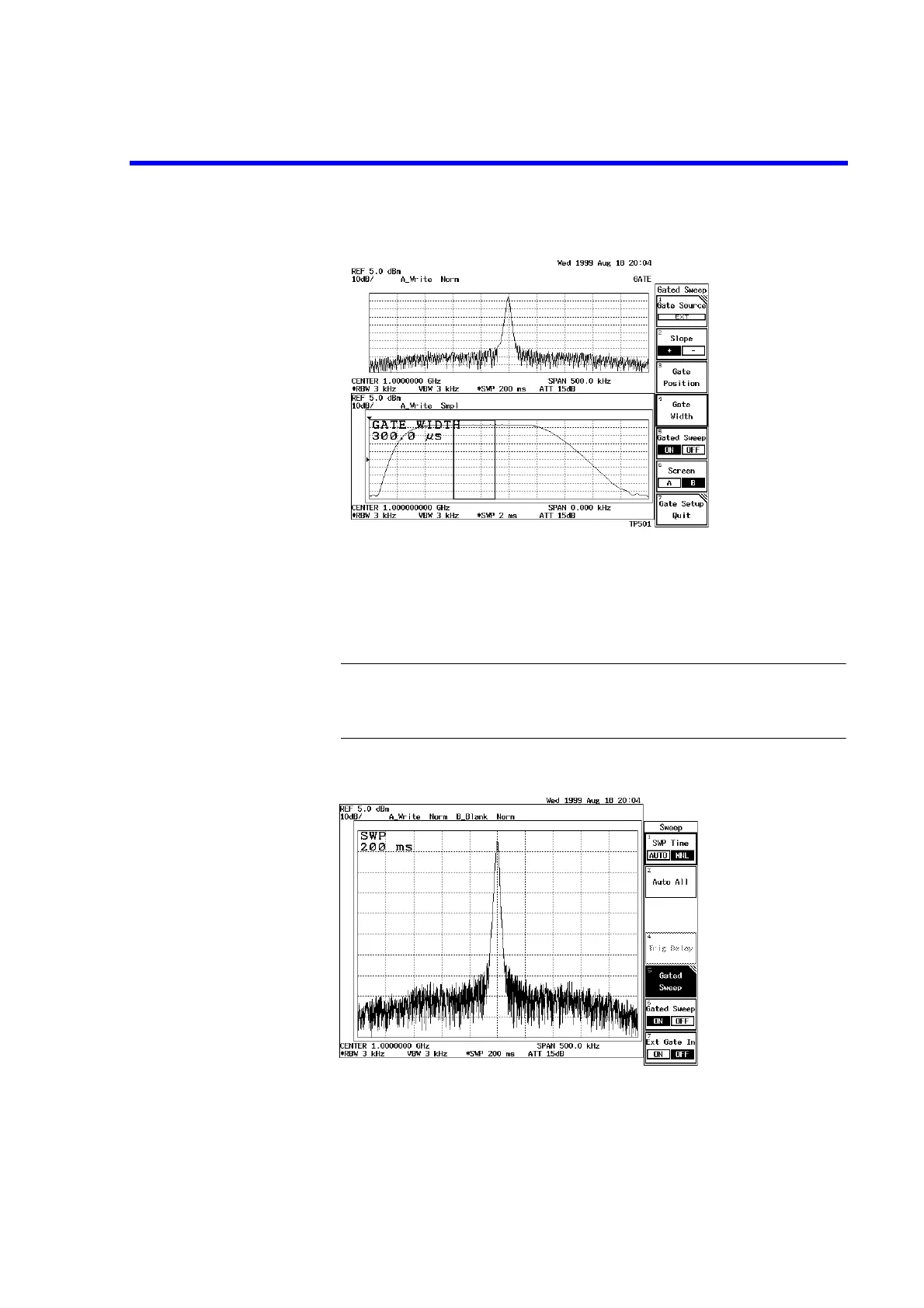

Figure 2-70 Burst Signal by Use of the Gated Sweep (Separate Screen Mode)
15. Press Gate Setup Quit.
The display shows the gated sweep trace in Full screen mode. You can now
change the frequency span and reference level if desired.
NOTE: Check the gated sweep for its settings after you have changed the resolution
bandwidth and video bandwidth of the spectrum (displayed on the upper
screen) when measuring a burst signal using the gated sweep.
Figure 2-71 Burst Signal by Use of the Gated Sweep (Full Screen Mode)
