R3132 Series Spectrum Analyzer Operation Manual
3.3.4 CONFIG Key (Configuration)
3-24

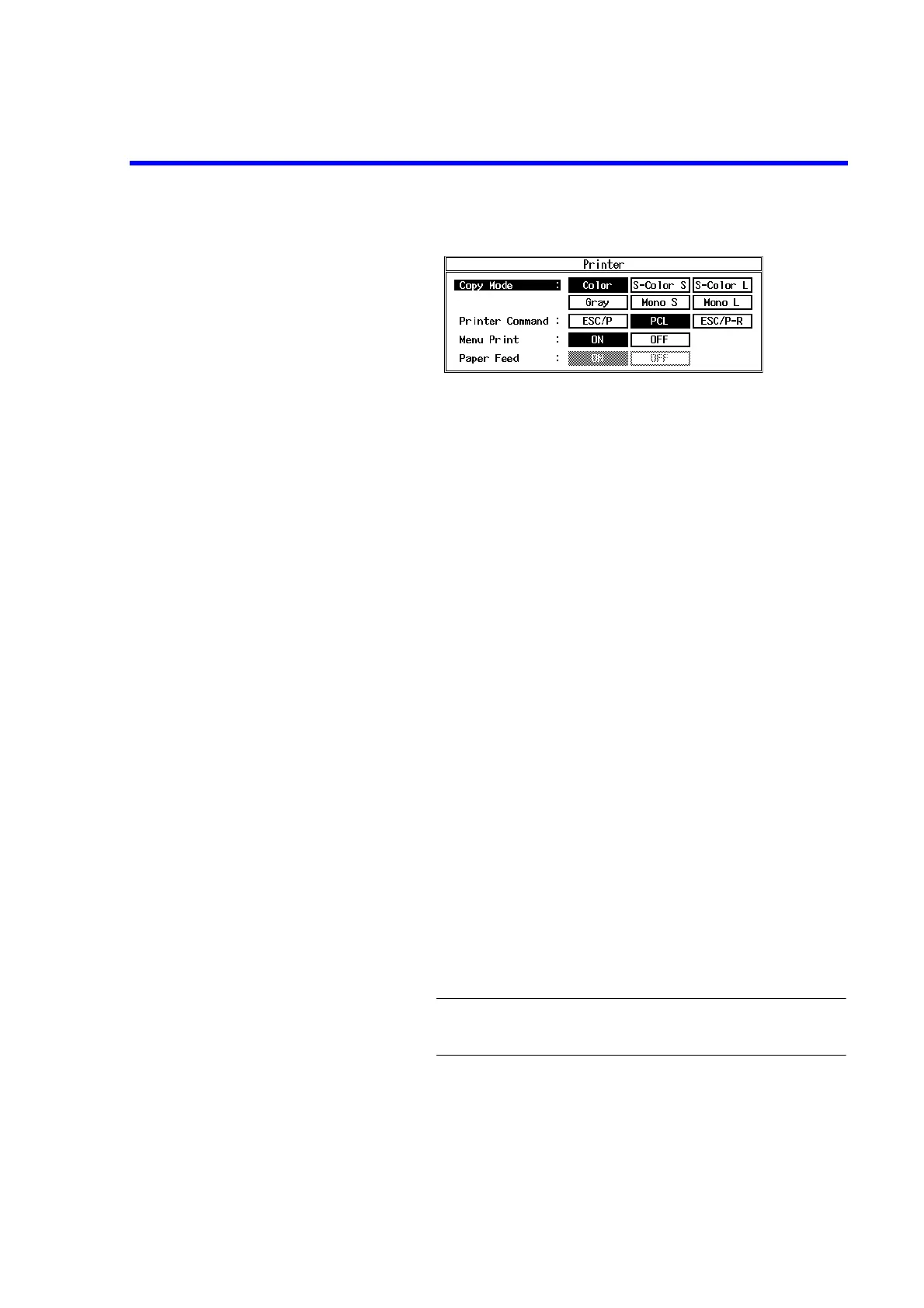

Copy Mode Sets the output mode.
Color: Prints the screen data in size L and the actual screen col-
or.
S-Color S:
Changes the screen data into a simple color image and
prints it in size S.
S-Color L:
Changes the screen data into a simple color image and
prints it in size L.
Gray: Prints the screen data in size L and in a four-level gray
scale.
Mono S: Sets the printer output mode to monochrome for S size.
Mono L: Sets the printer output mode to monochrome for L size.
L size is approximately the width of the paper used for
the analyzer in landscape orientation.
S size is approximately the width of the paper used for
the analyzer in portrait orientation.
Printer Command Selects the printer type.
ESC/P: Allows you to use an ESC/P printer.
HP PCL: Allows you to use a HP PCL printer.
ESC/P-R:Allows you to use an ESC/P Raster printer.
NOTE: Color, S-Color S and S-Color L in the Copy Mode menu
are available when HP PCL or ESC/P Raster is selected.
Menu Print Sets whether or not the menu labels are printed.
ON: The menu is included in the printout.
OFF: The menu is not included in the printout.
