Environmental Conditions
Safety-4
This instrument should be only be used in an area which satisfies the following conditions:
• An area free from corrosive gas
• An area away from direct sunlight
• A dust-free area
• An area free from vibrations

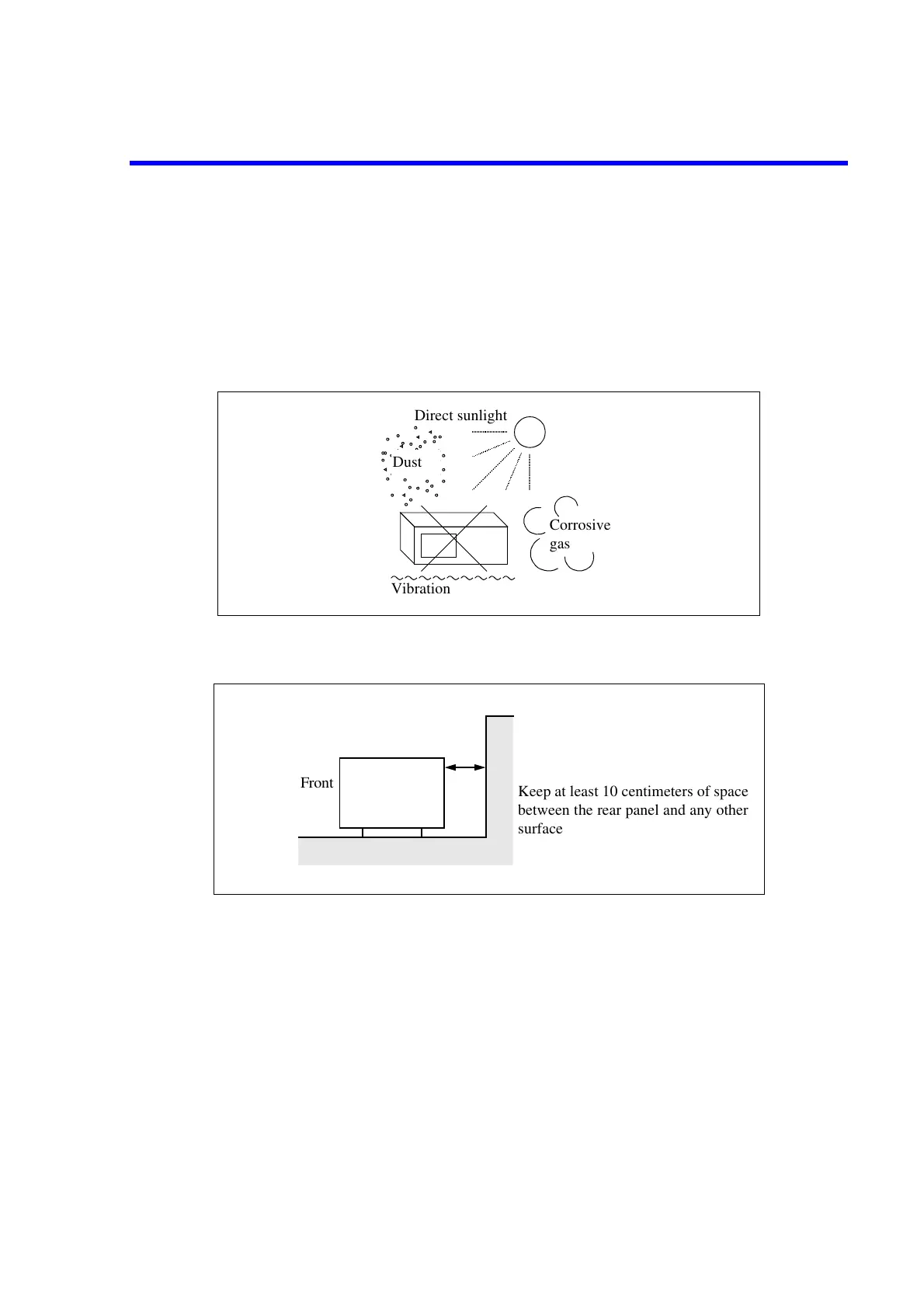

Figure-1 Environmental Conditions
• Instrument Placement
Figure-2 Instrument Placement
This instrument can be used safely under the following conditions:
• Altitude of up to 2000 m
• Installation Categories II
• Pollution Degree 2
Vibration
Direct sunlight
Corrosive
gas
Dust
Front
Keep at least 10 centimeters of space
between the rear panel and any other
surface
