CAUTION: Calibration of O2 sensor please refers to Chapter 5.8.4.
8.4.1. Replacement of O
2
sensor
Replacement steps of O
2
sensor:
1. Pull out O
2
sensor from inspiratory valve of breathing system.
2. Pull out O
2
sensor cable connection port from O
2
sensor.
3. Connect new O
2
sensor to cable connection port and install it on inspiratory valve of breathing
system.
8.4.2. Main technical parameter of O
2
sensor
CAUTION: Specific parameters refer to the latest published technical data by
manufacture.
O
2
sensor can be used to detect partial O
2
concentration of the anaesthetic workstation. O
2
sensor
belongs to consumptive products, so attentions should be paid to its useful-life. And use as the
characteristics and technical requirements provided by manufacture. Main technical requirements
of O
2
sensor in Aeon8800A as follows:

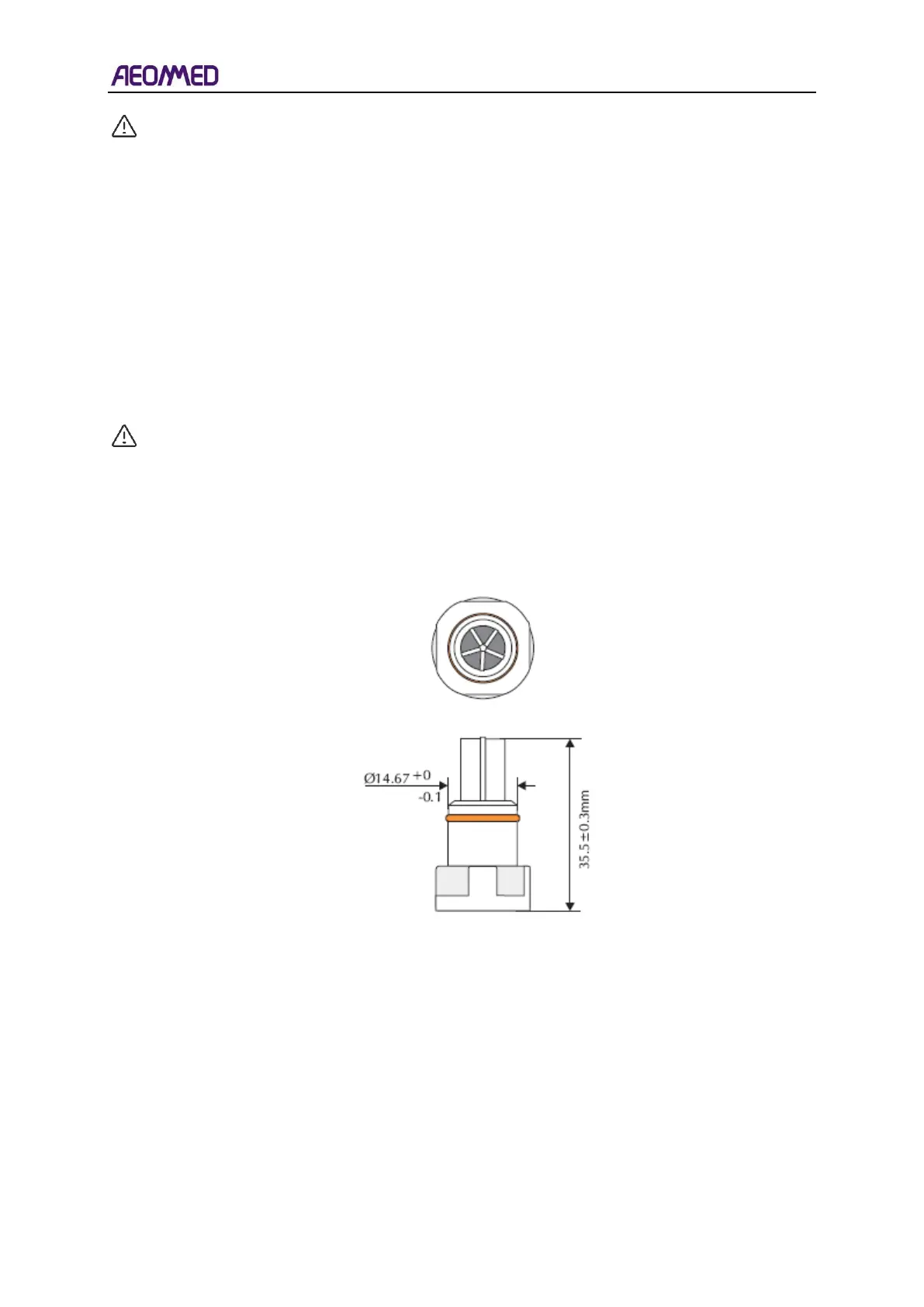

Table 8-2 O
2
sensor
Performance parameters:
Maximum input range of interface: 0mV－500mV DC
Interface form and definition: FCC-68 4 core telephone pin (RJ11-4), see the following figure.
Output: 9mV -13mV（210mBar O
2
）
Range: 0mBar -1500mBar O
2
Signal: 100±1（100% O
2
）
Resolution: 1mBar O
2
