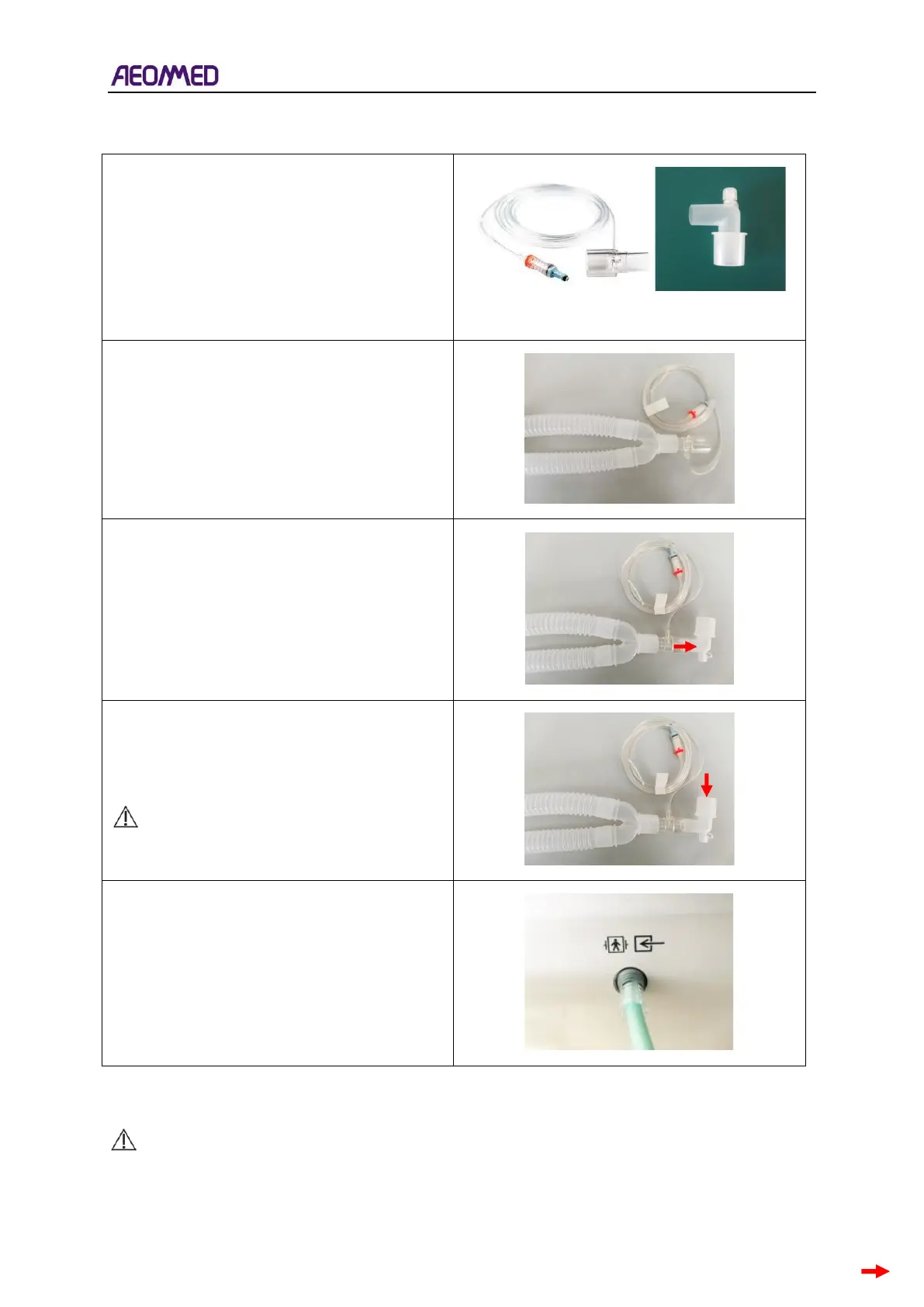

4.1.5.2. Connection of the sidestream monitoring module

Step 1:

Take out the sampling tube and elbow.

Sampling tube Elbow

Step 2:

Connect one end of the sampling tube to the

Y-piece.

Step 3:

Connect the other end of the sampling tube to

the elbow.

Step 4:

Connect the other end of the elbow to the

patients.

CAUTION: Use only Nomoline sampling

lines manufactured by MASIMO.

Step 5:

Connect the other end of the sampling tube to

the gas inlet of Aeon8800A.

4.1.6. Connection of AGSS

CAUTION:

◼ AP1000 cannot at an angle exceeding 5 degrees during normal operation.
