2.3. Breathing system
CAUTION: The breathing system used with Aeon8800A complies with ISO 80601-2-13.
The main usage of the breathing system is to store anaesthetic gas, oxygen, and AIR, discharge
exhaust gas, and absorb CO2. The breathing system directly connects with the respiratory tract to
assist the completion of the breathing process.

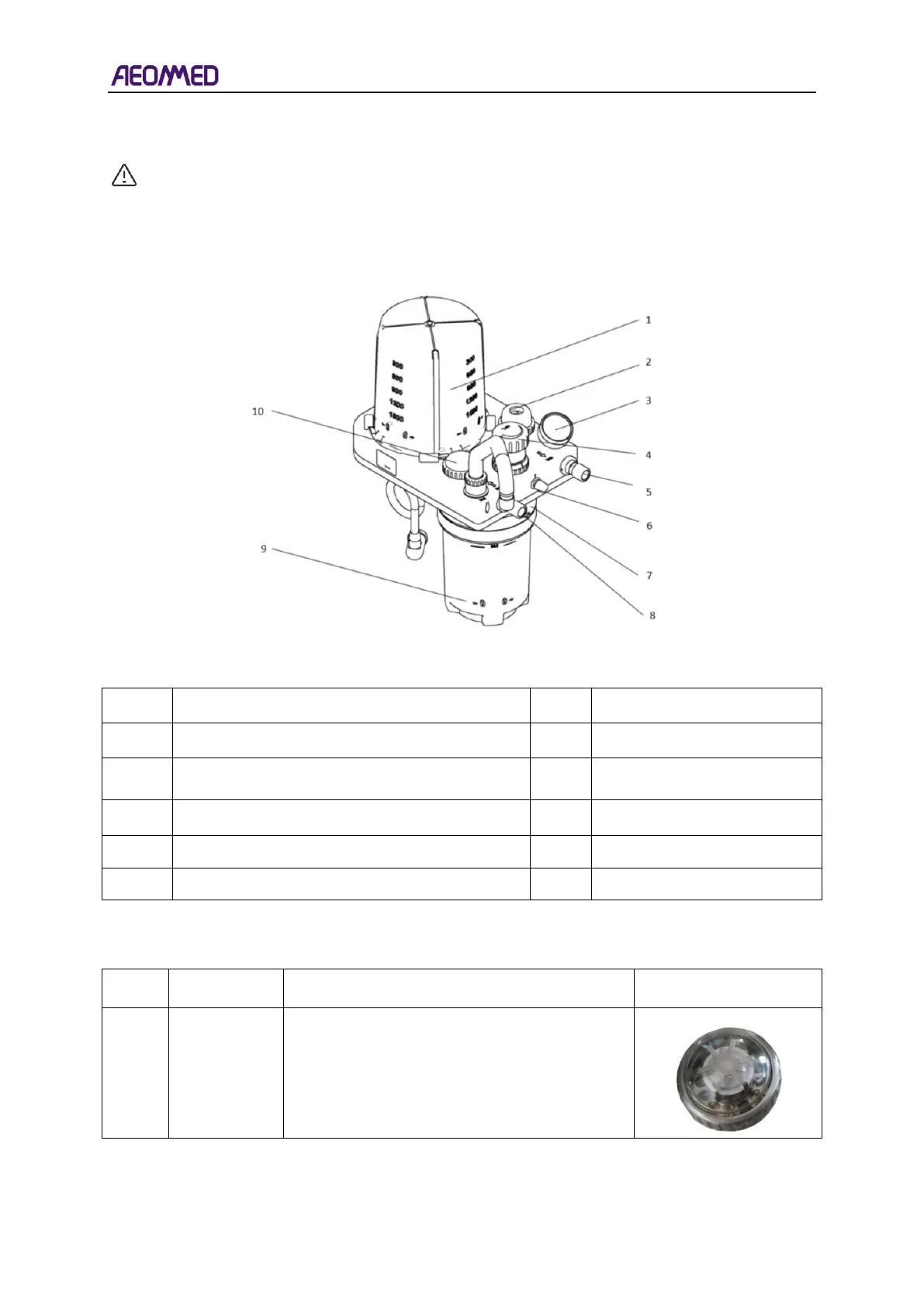

Table 2-4 Breathing System
No.
Name
No.
Name
1
Bellows Assembly（including bellows）
6
APL
2
Expiratory Valve
7
Inspiratory Port
3
Expiratory Port
8
Y-Piece Seal
4
CO
2
Absorber Canisters
9
Bypass switch module
5
O
2
cell plug /Inspiratory Valve
Functional description of components is as follows:
NO
Item
Description
Figure
10
Exp. valve
It guarantees the single direction of the gas
flow in breathing system.
