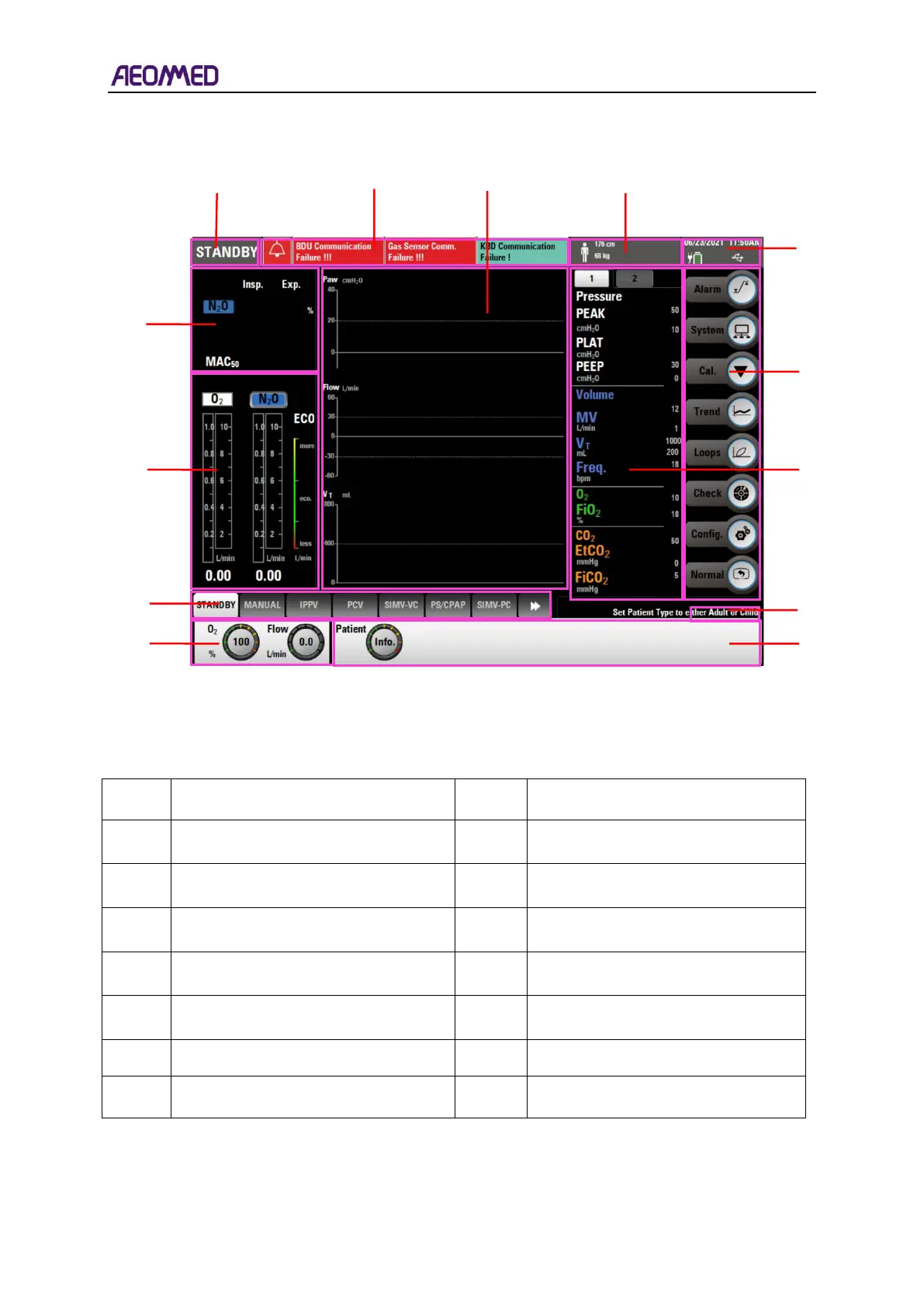

The user interface is divided into thirteen areas, see Figure 3-3.
Table 3-3 User interface
NO
Name
NO
Name
1
Anaesthetic gas monitoring area
8
Shortcut key area
2
Electronic control Flowmeter area
9
Machine information area
3
Ventilation mode set area
10
Patient message area
4
Flowmeter set area
11
Waveform display area
5
Parameter set and display area
12
Alarm indication area
6
Prompt message area
13
Ventilation mode display area
7
Patient parameter monitoring area
