8210-00020 R1 101

Installing the Hopper Cloth onto the Hopper Springs

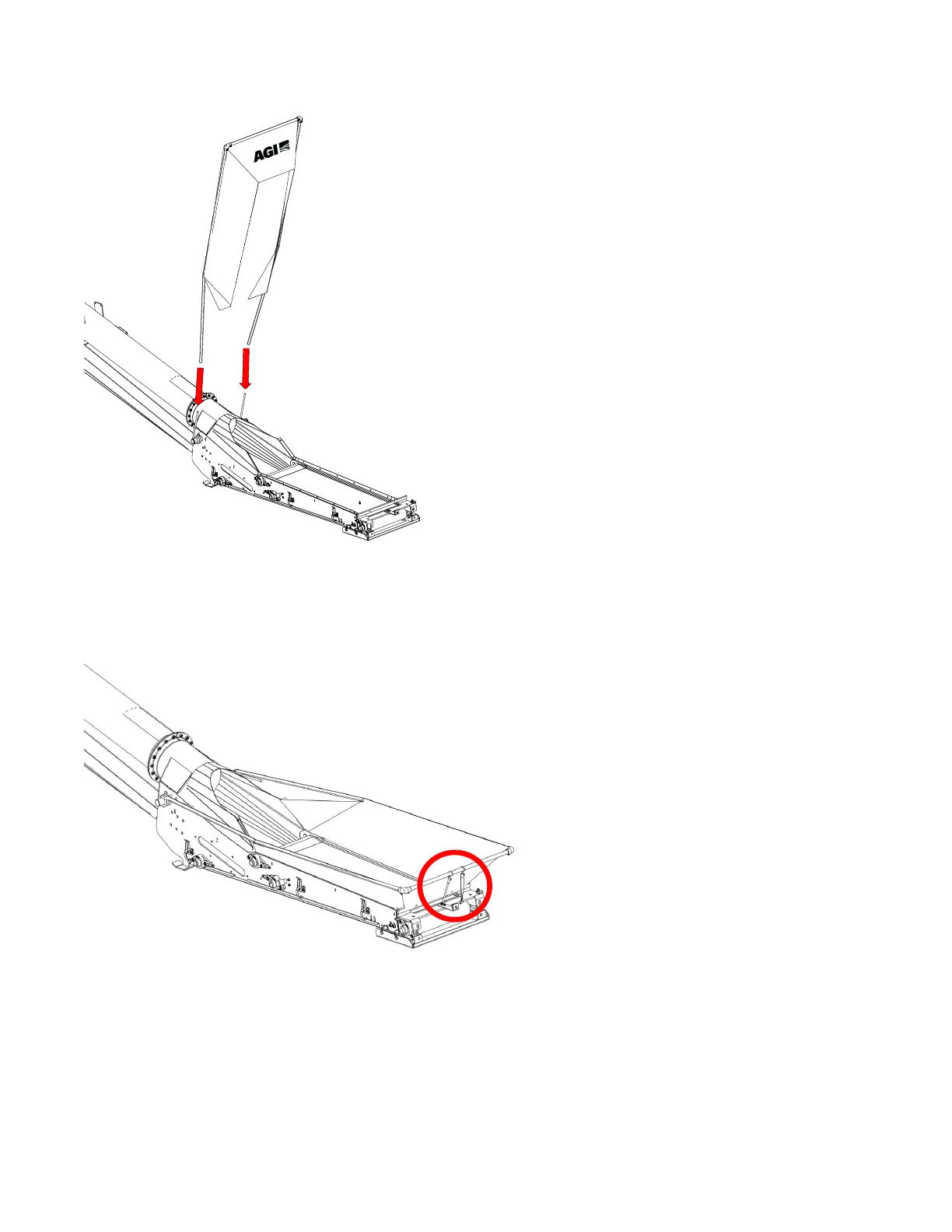

3.23.3 Secure the Upper Hopper Cloth Frame to the Hopper

Note

Use a chain or bungee to secure the upper hopper cloth frame to the front of the hopper.

FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
