AGI BCX3 1549 - Install the Crossbrace, Motor Guard, Fuel Tank Mount, and Stabilizers

78 8210-00020 R1
3.20.6 Install the Crossbrace, Motor Guard, Fuel Tank Mount, and Stabilizers
Note
Do not tighten the frame bolts until the stabilizers are installed.
Item
Description
1
Crossbrace
2
Motor Guard
3
Fuel Tank Guard
4
Stabilizers

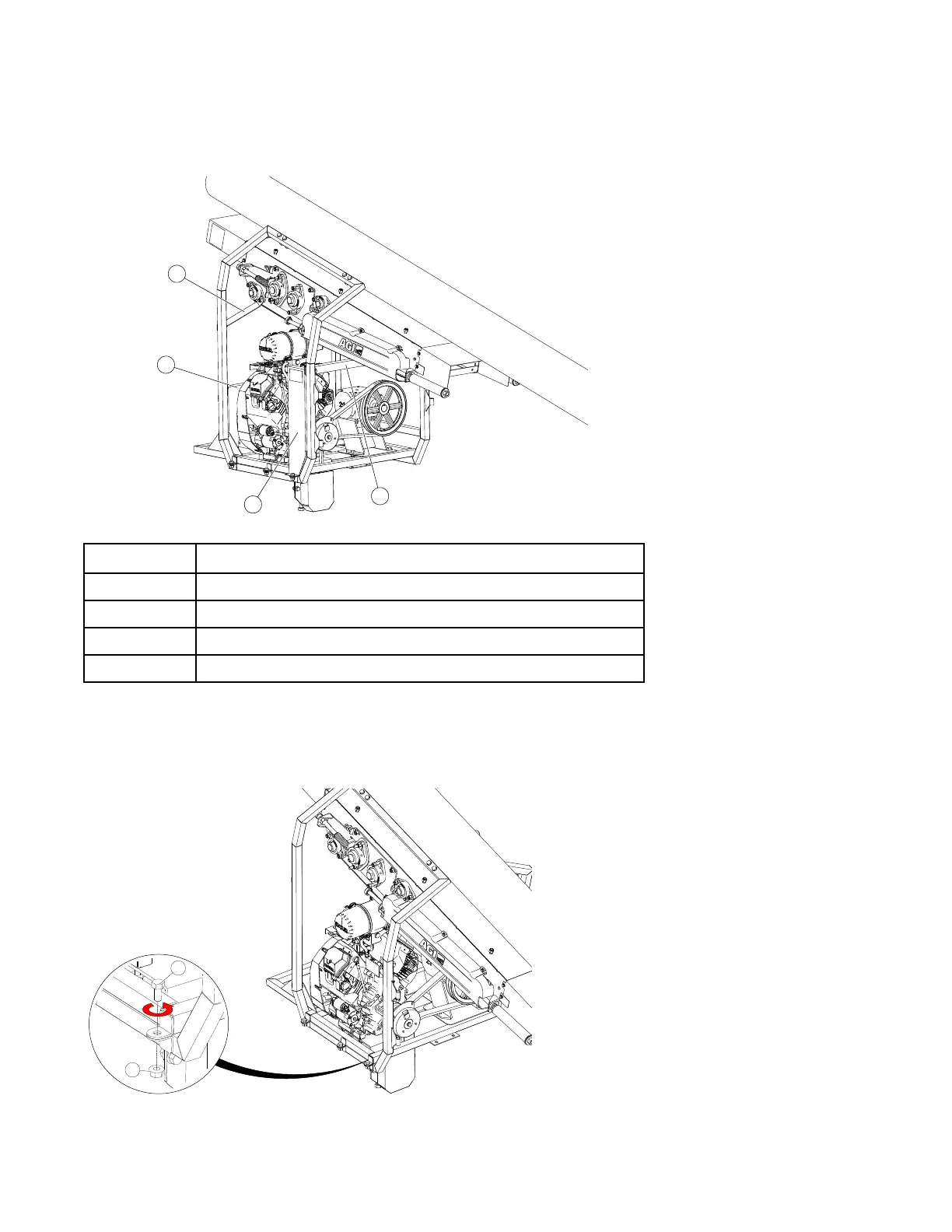

Installing the Crossbrace and Motor Guard
Note
Remove the bolt and nut securing the bottom frame to the left side frame.
3
4
1
2
4
2
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
