AGI BCX3 1549 - Install the Under-Mount Drive

66 8210-00020 R1
3.20. Install the Under-Mount Drive
Important
Do not tighten the frame bolts until Step 5 is complete.
Step
Procedure
1
Assemble the Frame
2
Install the Motor
3
Install the Hydraulic Pump and Clutch
4
Install the Gearbox, Motor Pulley, Motor Pulley Belt, and Clutch Stop
5
Install the Drain Hose Clamps, Drain Hose, and Muffler
6
Install the Crossbrace, Motor Guard, Fuel Tank Mount, and Stabilizers
7
Install the Torsion Idler
8
Install the Drive Pulleys, Drive Belt, and Torsion Idler
9
Install the Battery
10
Install the Guards
4
10
1
7
5
2
6
3
9
8

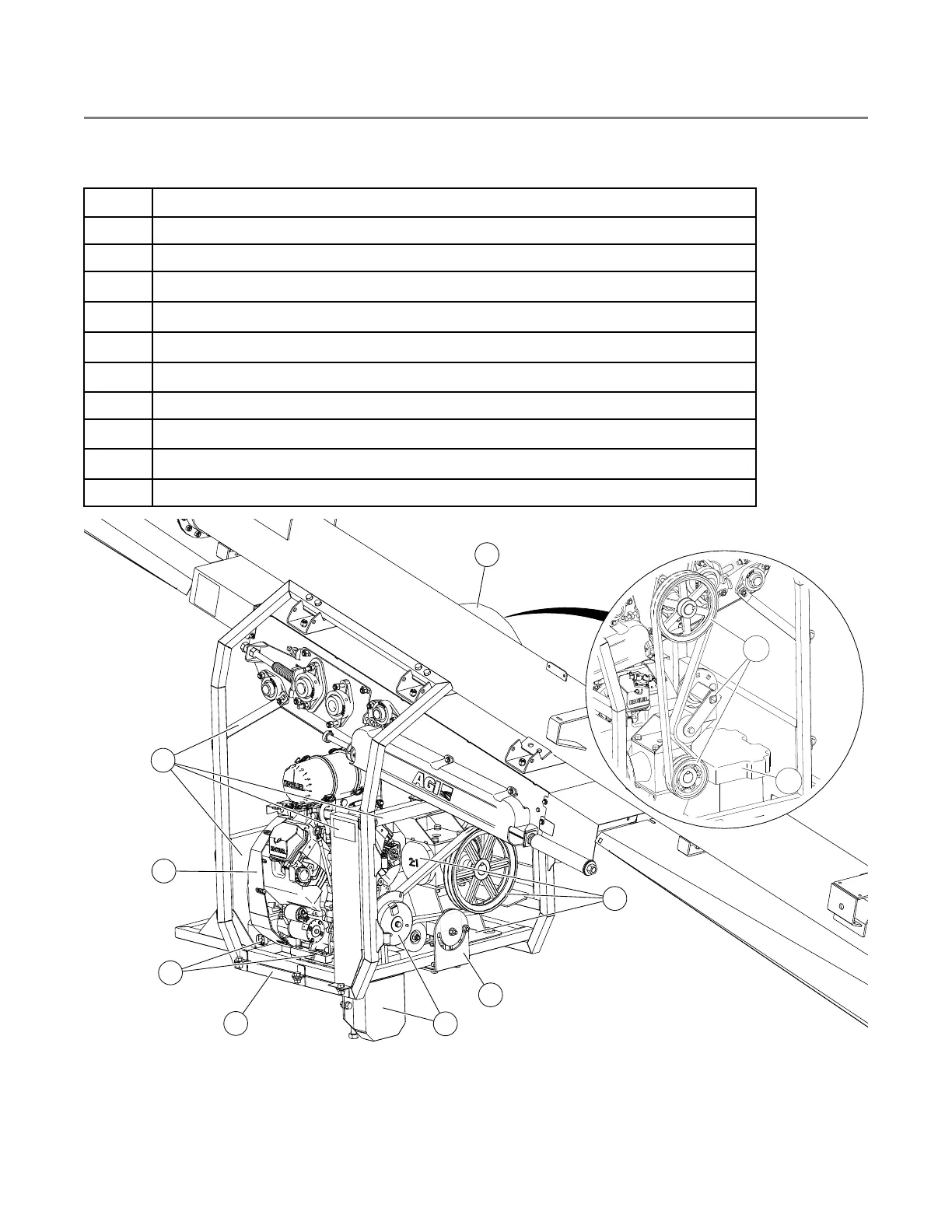

View of Opposite Side
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
