AGI BCX3 1549 - Gas Drive Control Box Wiring

142 8210-00020 R1
3.39. Gas Drive Control Box Wiring
Important
• Consult the OEM (original equipment manufacturers) manual to make all required electrical
connections.
• Before you begin wiring, make sure to take the key out of the control box.
Control Box Wiring Connections

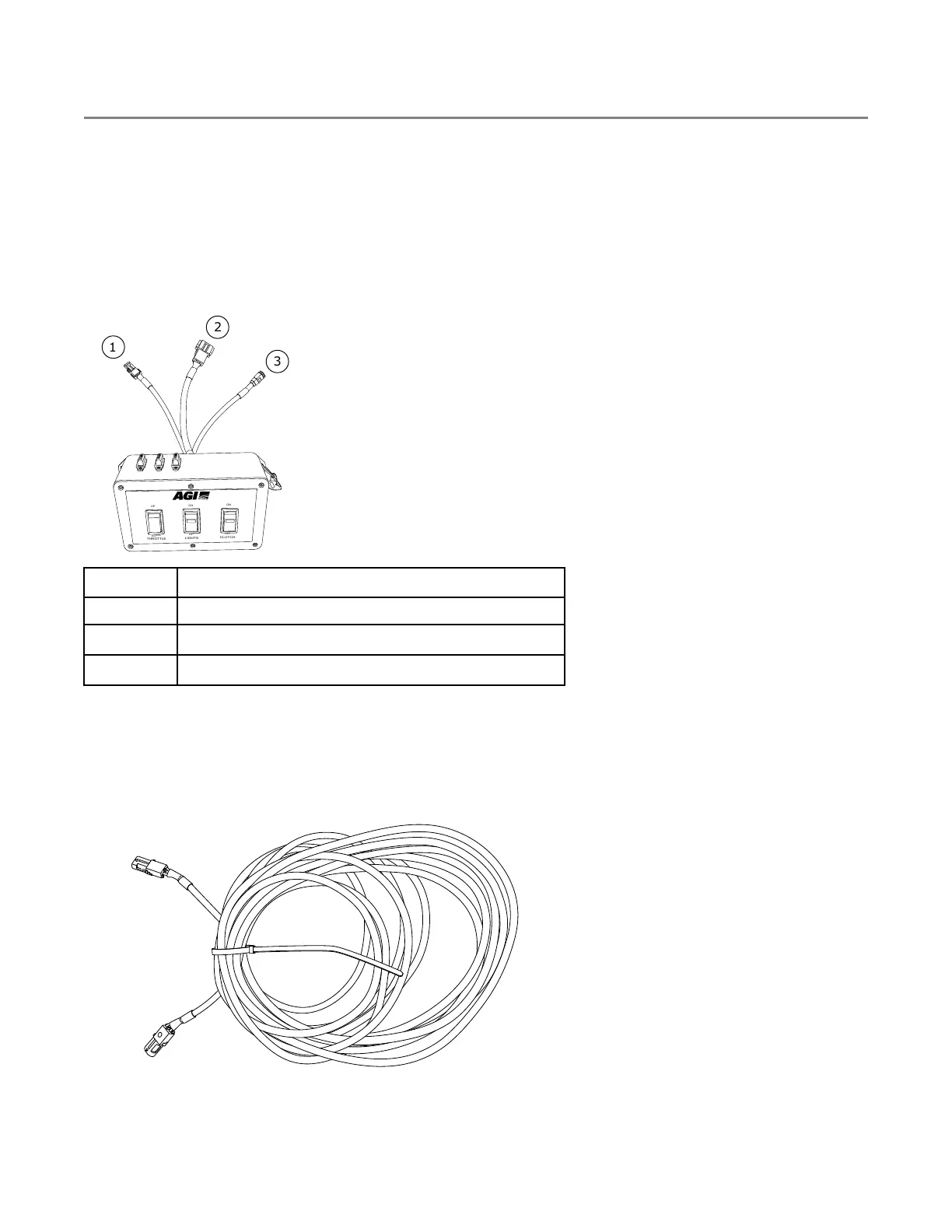

Figure 81. Control Box Pigtail Wire Connections
1
2
3
ON
ON
UP
DOWN
OFF
OFF
CLUTCH
LIGHTS
THROTTLE
Item
Description
1
Throttle Harness Cable
2
Engine Harness Cable
3
Lighting Harness Cable
Throttle Harness
1. Connect the throttle harness (Figure 82) to the throttle harness cable (1), see Figure 81.
Figure 82. Throttle Harness
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
