8210-00020 R1 111

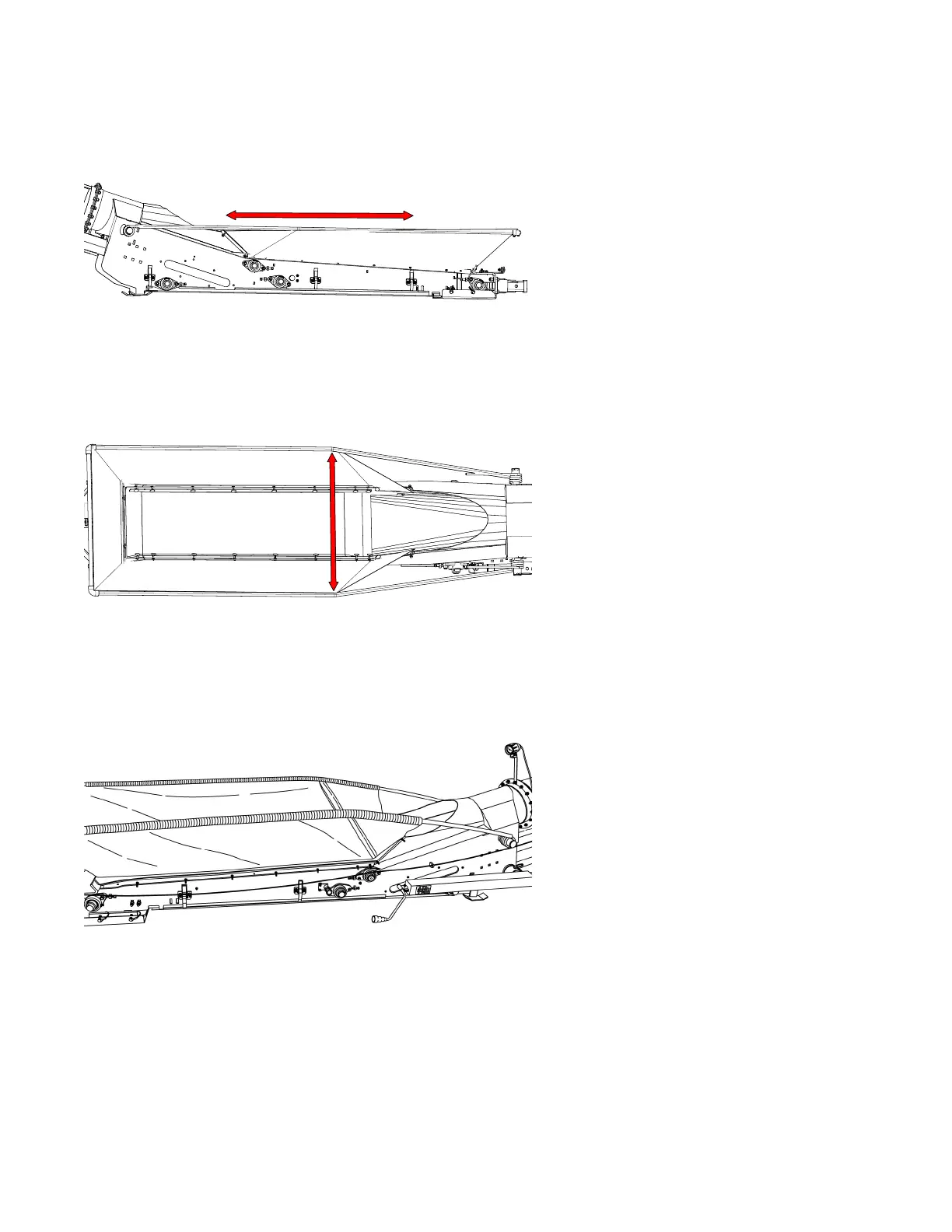

3.23.10 Final Check

1. Ensure the top frame pieces are flat and do not rise at an angle.

2. Ensure the top frame pieces bow outward.

If the frame bends upwards, ensure tek-screws were installed correctly when assembling the upper cloth frame.

Incorrect

FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
