AGI BCX3 1549 - Install the Torsion Idler

58 8210-00020 R1

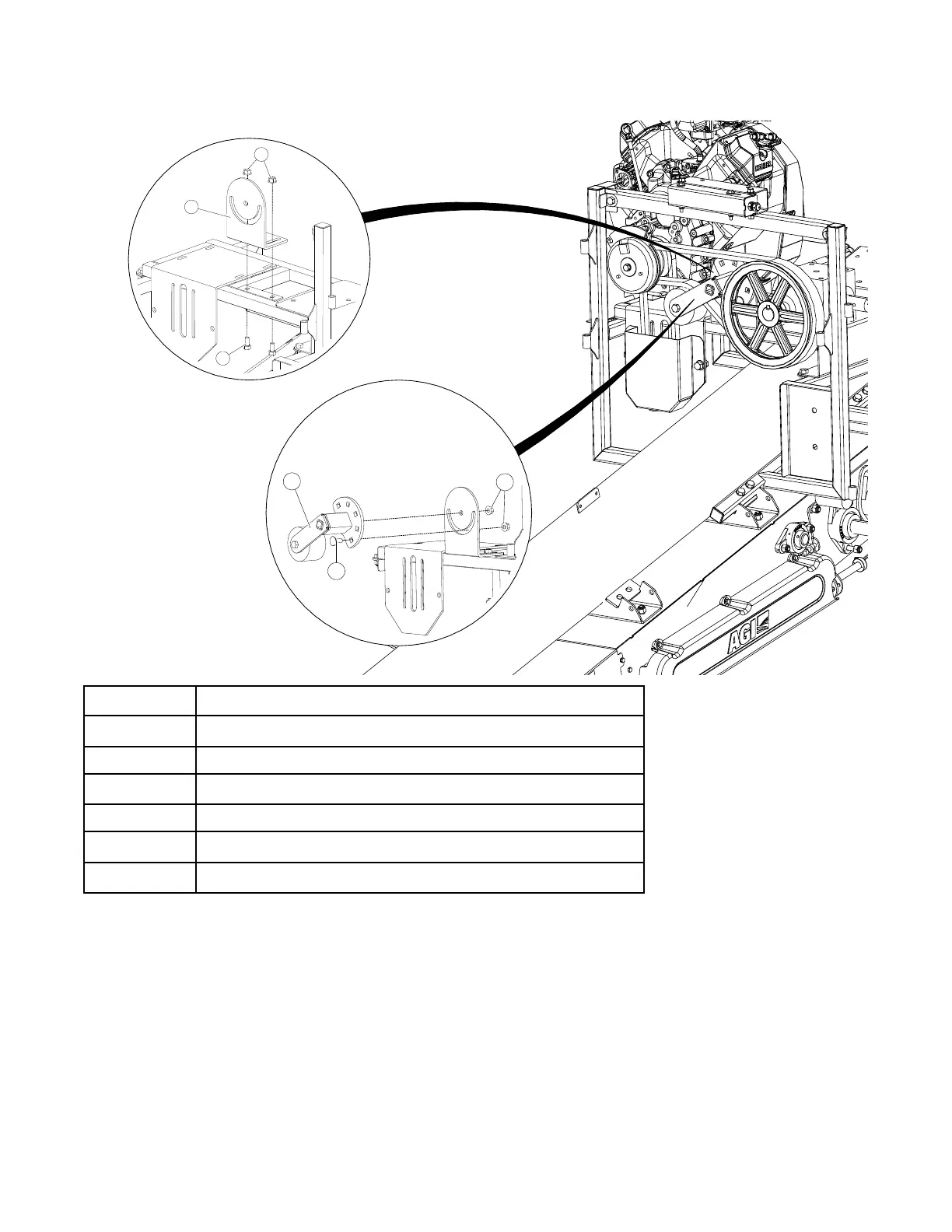

3.19.8 Install the Torsion Idler
Item
Description
1
1/2" Hex Flange Nut
2
Torsion Idler Mount Plate
3
1/2" X 1" Hex Bolt (GR 8)
4
Torsion Idler Arm
5
1/2" X 1–1/4" Carriage Bolt
6
1/2" Hex Flange Nut
Hardware: HRDW-15–133
Note
Do not tension the drive belt with the torsion idler until both drive belts are installed and aligned, and
the frame, motor, and gearbox hardware are all fully tightened.
6
4
5
3
2
1
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
