3.41. Install the Inspection Step
The inspection step is used on conveyors with a top mount gas engine or electric motor.
1. Position the inspection step adjacent to the portion of the axle frame with anti-slip tape (and below the gas
engine or electric motor) as shown in Figure 88.
2. Attach 3/4" x 3" u-bolts (2) from the underside of the axle frame and through the inspection step (1) with
3/4" nylock nuts (3) and 3/4" flat washers (4) (see Figure 88).
Table 30. Inspection Step Components
ITEM DESCRIPTION
QTY
1 Inspection Step 2
2
3/4" x 3" U-Bolt
4
3
3/4" Nylon Locknut (GR8)
8
4
3/4" Flat Washer
8
Hardware Kit: HRDW-20-16

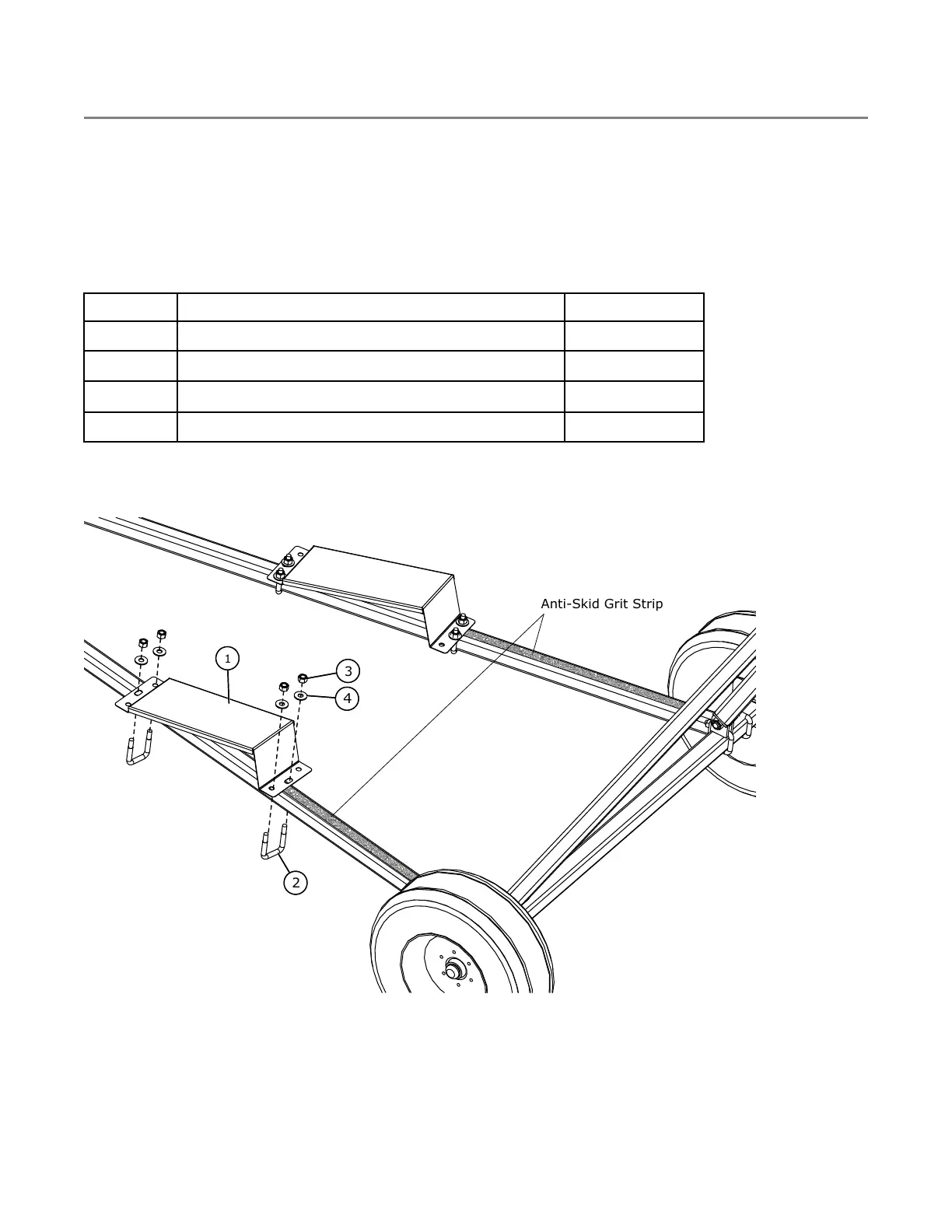

Figure 88. Installing Inspection Step
3
2
1
4
3
2
1
4
Anti-Skid Grit Strip
