AGI BCX3 1549 - Install the Motor

70 8210-00020 R1

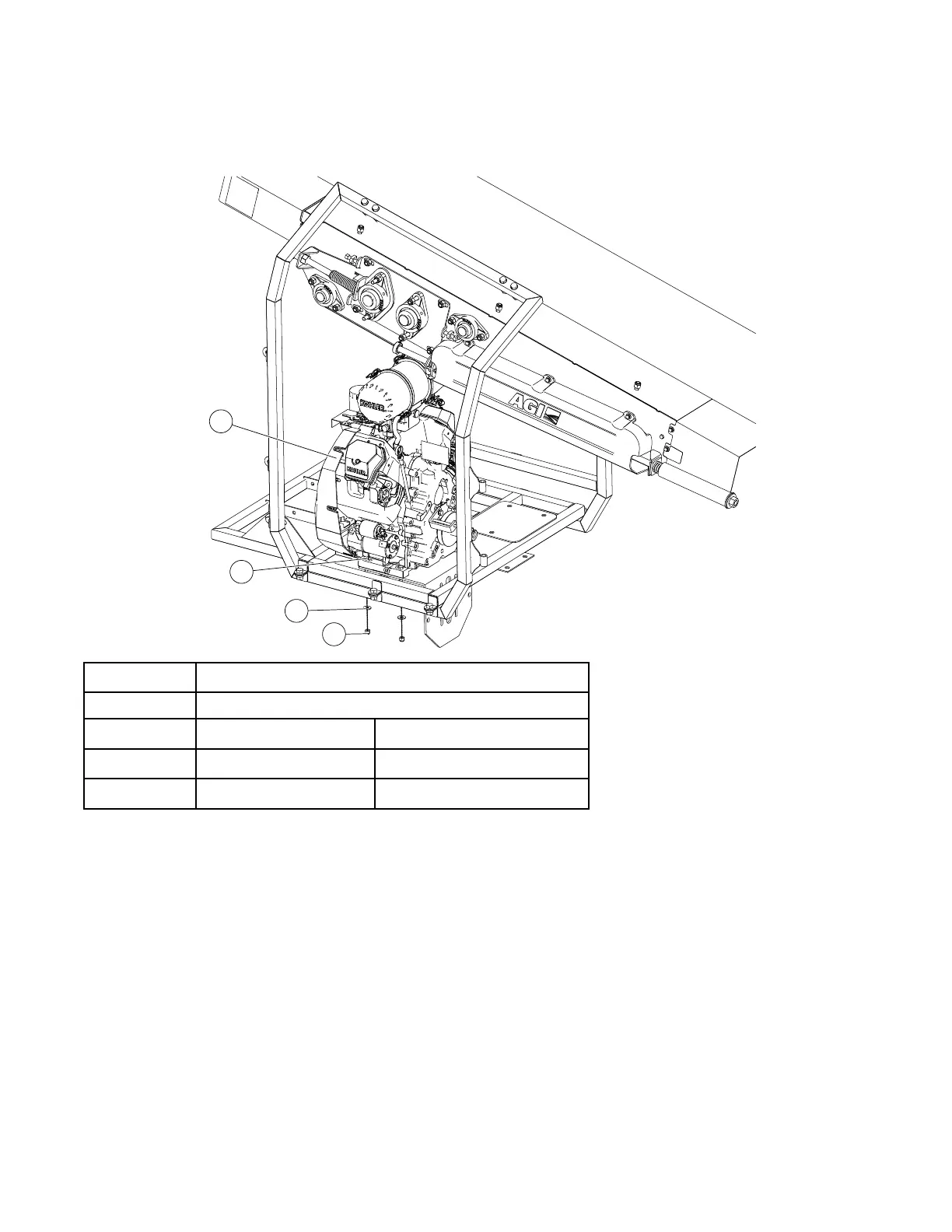

3.20.2 Install the Motor
Important
Do not tighten the motor bolts until the drive belts have been installed and aligned.
Item
Description
1 Motor
2
5/16" Lock Nut 3/8" Lock Nut
3
5/16" Flat Washer 3/8" Flat Washer
4
5/16" X 2" Hex Bolt 3/8" X 2" Hex Bolt
Note
Both sizes of hardware are included in the hardware kit. Use the size of hardware indicated in the
motor installation manual.
Hardware Kit: HRDW-15-100
2
3
4
1
