8210-00020 R1 125
3.32. Adjusting the Hopper and Spout Scraper
1. Loosen the nuts (on both sides) holding the scraper to the hopper or spout, see Figure 60.
2. Lower scraper until it rests on the belt with light pressure.
Important
Ensure no part of the metal scraper mount contacts the belt.
3. Tighten the nuts.

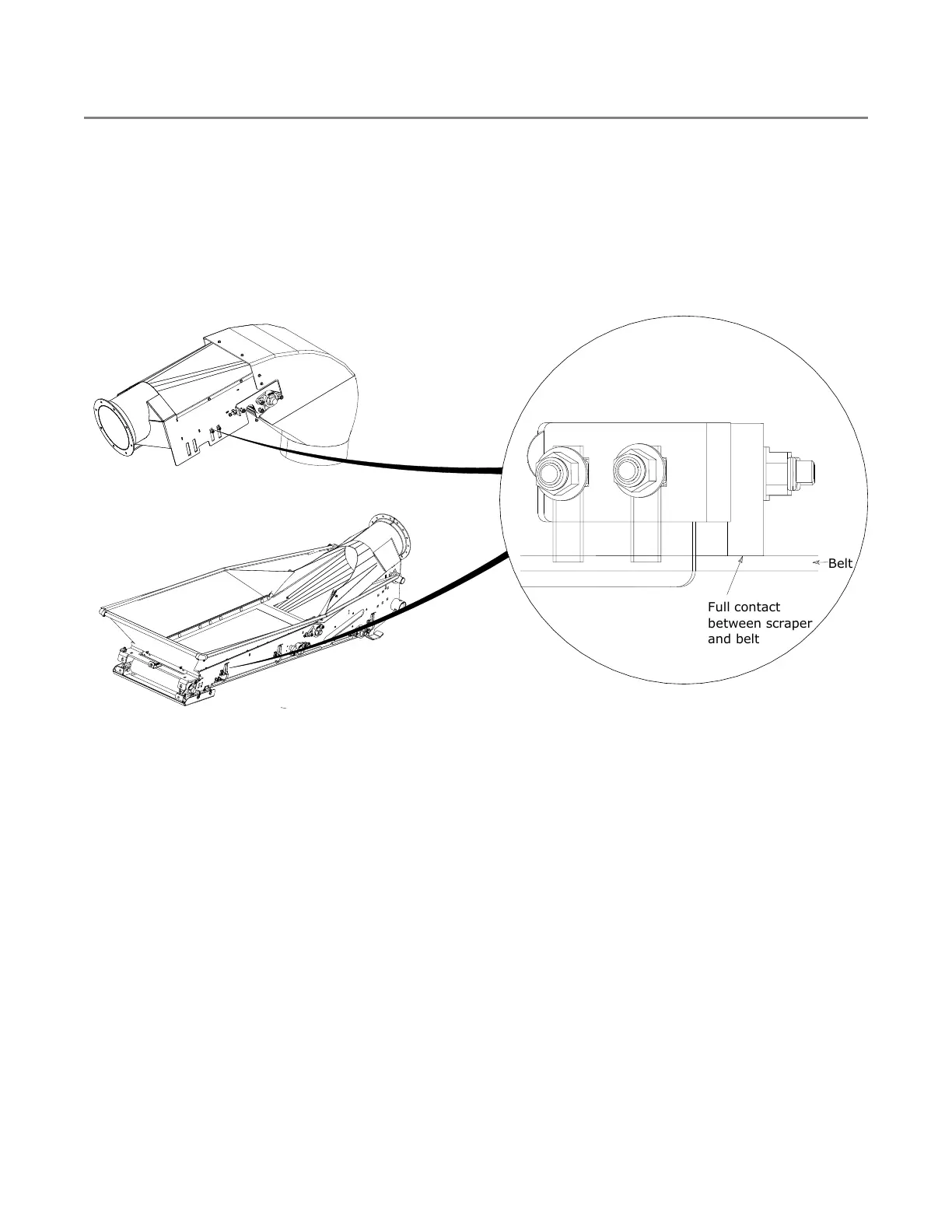

Figure 60. Adjusting Scraper
Belt
Belt
Full contact
between scraper
and belt
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
