3.31. Install the Spout Cap and Hood
1. Attach the spout cap (1) to the spout using four 1/4" x 3/4" serrated hex flange bolt (2), see Figure 58.
2. Place the hood (3) around the bearing assembly (see Figure 59).
3. Use 1/4" x 3/4" serrated hex flange bolt (2) to secure the hood to the conveyor spout.
Table 23. Spout Cap and Hood Components
Item
Description Quantity
1 Spout Cap 1
2
1/4" x 3/4" Serrated Hex Flange Bolt (GR5)
10
3
Hood
1
4
1/4" Fender Washer
6
Hardware Kit: HRDW-15-97

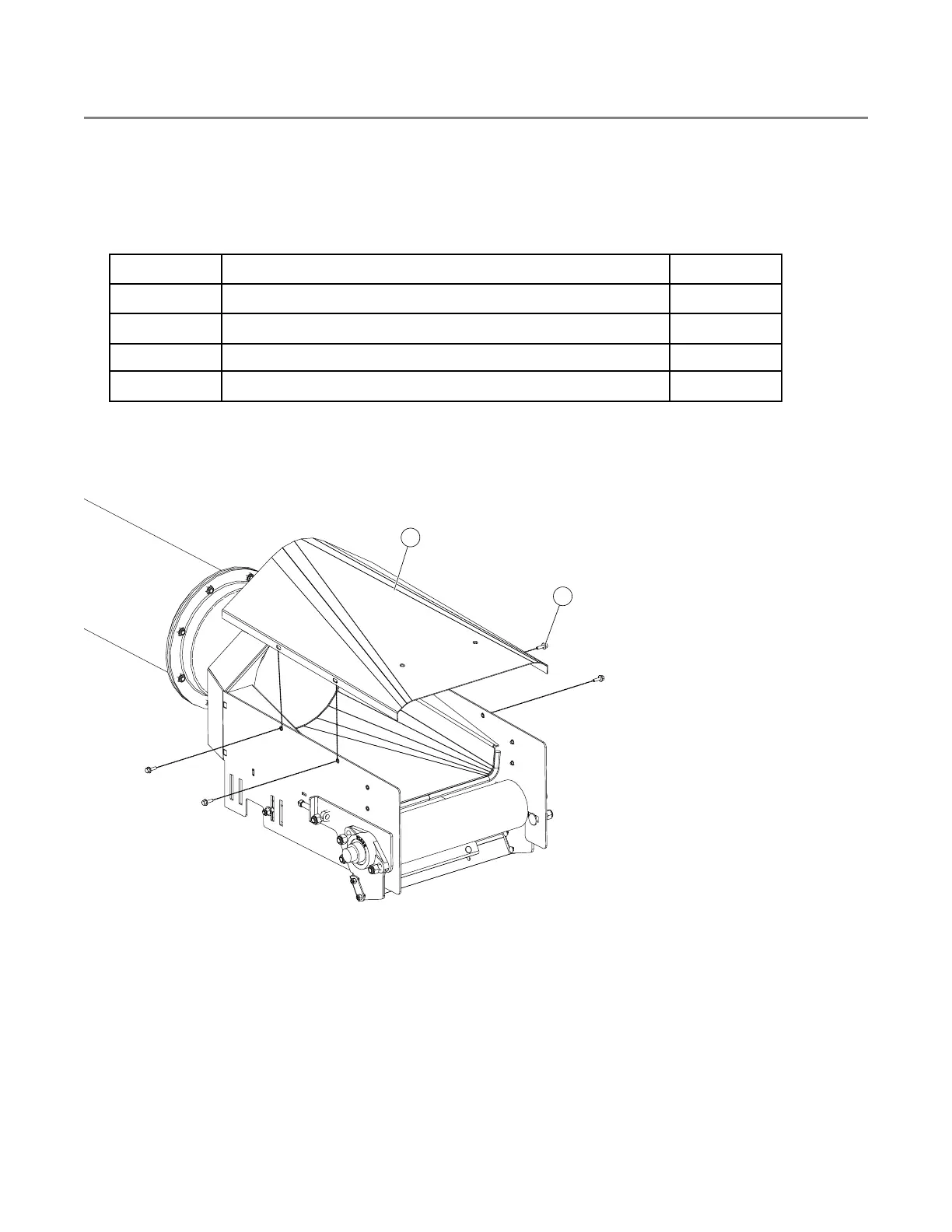

Figure 58. Installing Spout Cap
2
1
