3.12. Install the Track Slider
1. Slide the track slider (1) onto the track (see Figure 19).
2. Install the cable attach (2) on the track with 7/16" x 1-1/2" bolts (3), 7/16" locknuts (4), and flat washers (5).
Table 6. Track Slider Components
Item
Description
1
Track Slider
2
Cable Attach
3
7/16" x 1-1/2" Hex Bolt (GR8)
4
3/8" Flat Washer
5
7/16" Nylock Nut (GR8)
Hardware Kit: HRDW-15-124

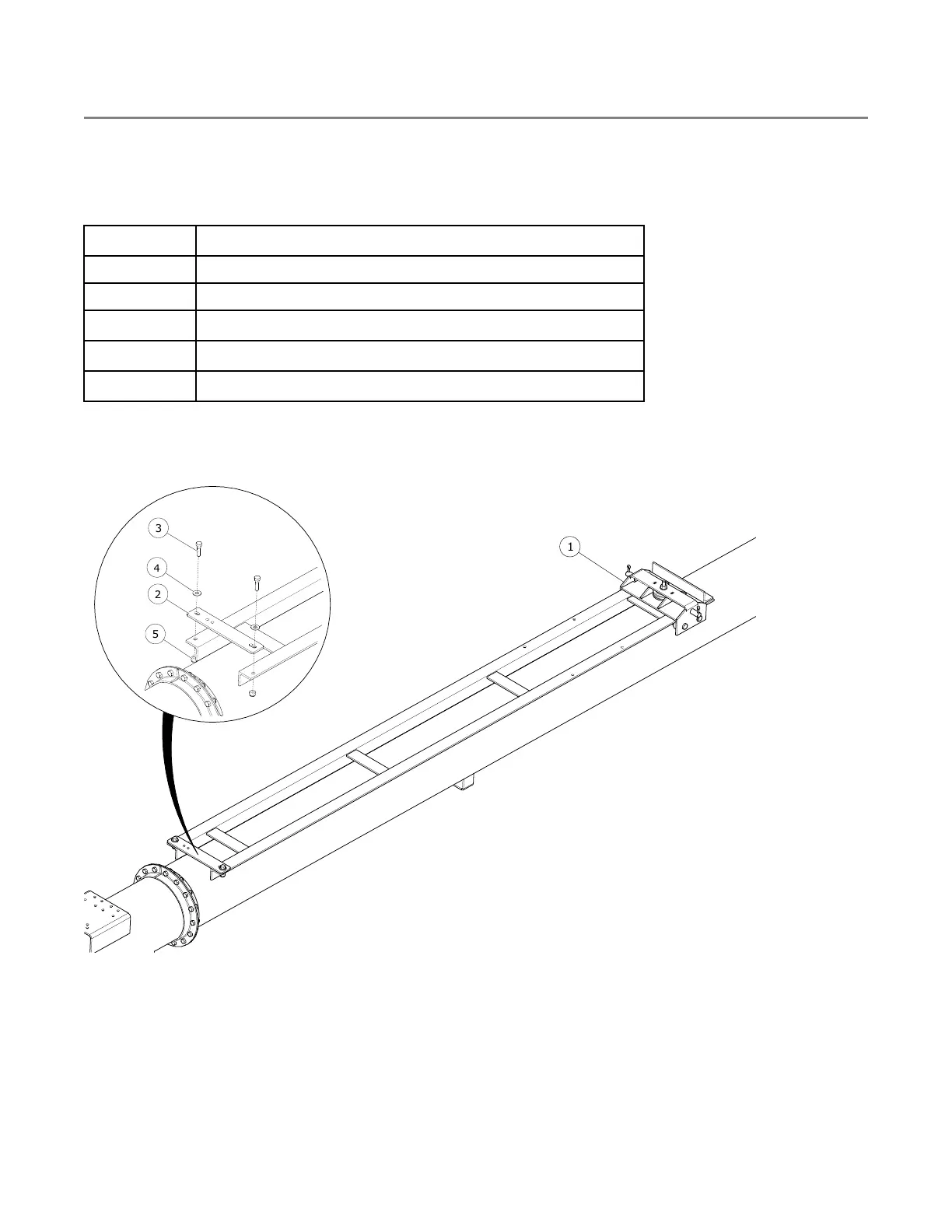

Figure 19. Installing the Track Slider
1
5
2
4
3
