136 8210-00020 R1
3.37.4 Install Primer Bulb (For Under-Mount Drive)
Important
Check the primer bulb for setup orientation for proper fuel flow direction. The red end points of the
bulb must connect to the gas tank side. Arrows, imprinted on the primer bulb, indicate the direction of
fuel flow, which has to be from gas tank to gas engine. Check for any defects in the bulb and hoses prior
to installation.
1. Route fuel hose of reasonable length from the fuel tank to the primer bulb. Connect the fuel line to the
primer bulb with hose clamp. see Figure 69 and Figure 70.

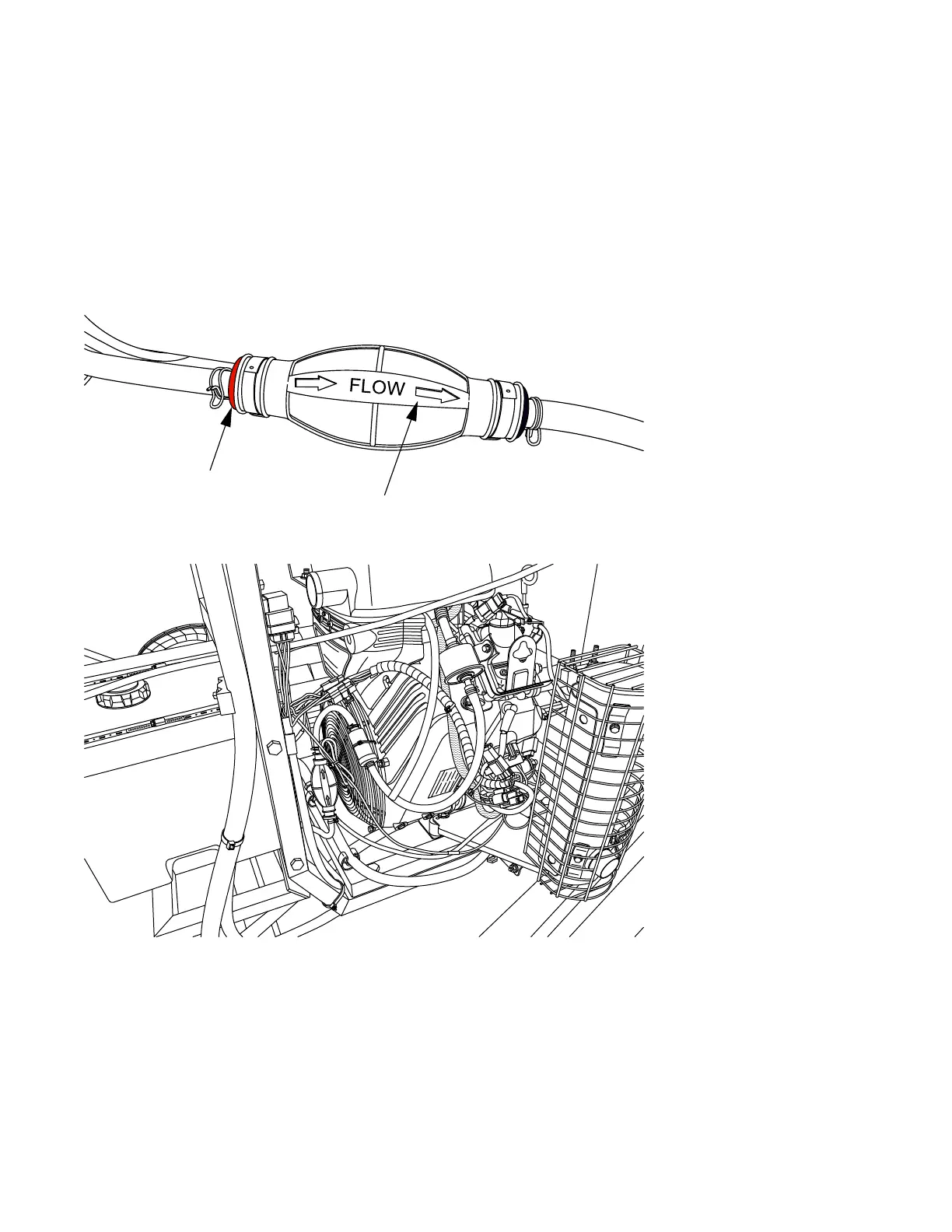

Figure 69. Primer Bulb
Fuel Flow Direction
Gas Tank Connection Side
(Red End)
Figure 70. Hose Routing From Fuel Tank
2. Connect a fuel filter (Figure 71) using 1/4" fuel line to the primer bulb. Use a reasonable length of fuel line
so that the fuel demand valve can easily be installed between the primer bulb and the fuel filter.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
