AGI BCX3 1549 - Insert the Lower Hopper Cloth Frame into the Hopper Cloth

104 8210-00020 R1
3.23.5 Insert the Lower Hopper Cloth Frame into the Hopper Cloth

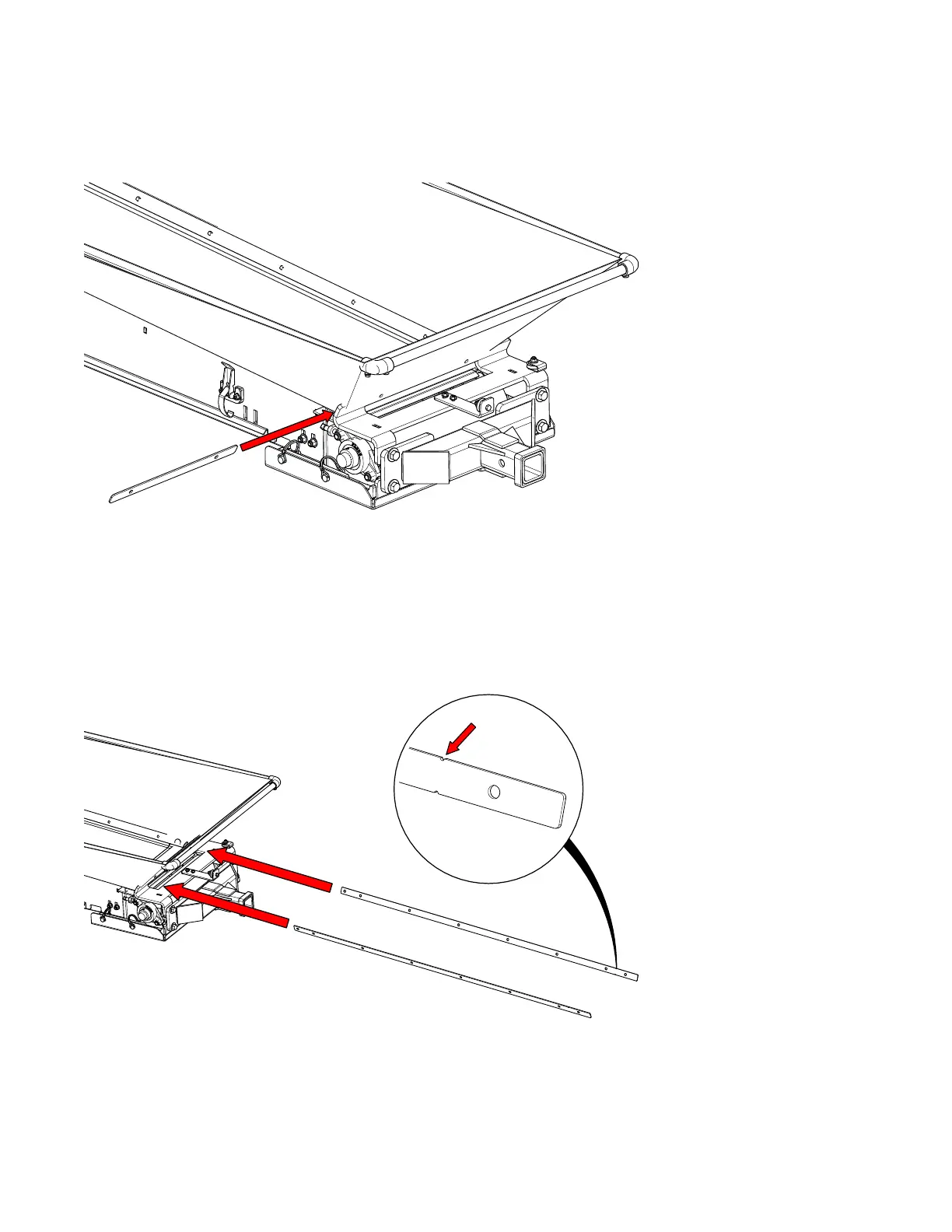

1. Insert the frame pieces into the sewn pockets in the hopper cloth.
Insert the Front Lower Hopper Cloth Frame
Insert the Side Lower Hopper Cloth Frame
Note
Locate the notch on one end of the side frame.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
