3.19.6 Install the Drain Hose Clamps, Drain Hose, and Muffler
1. Attach the drain hose clamps to the bottom frame with tek screws.
2. Remove the plug insert on the engine.
3. Attach the oil drain hose to the engine.
4. Secure the oil drain hose with the clamps.
5. Install the muffler according to the instructions that arrived with the motor.

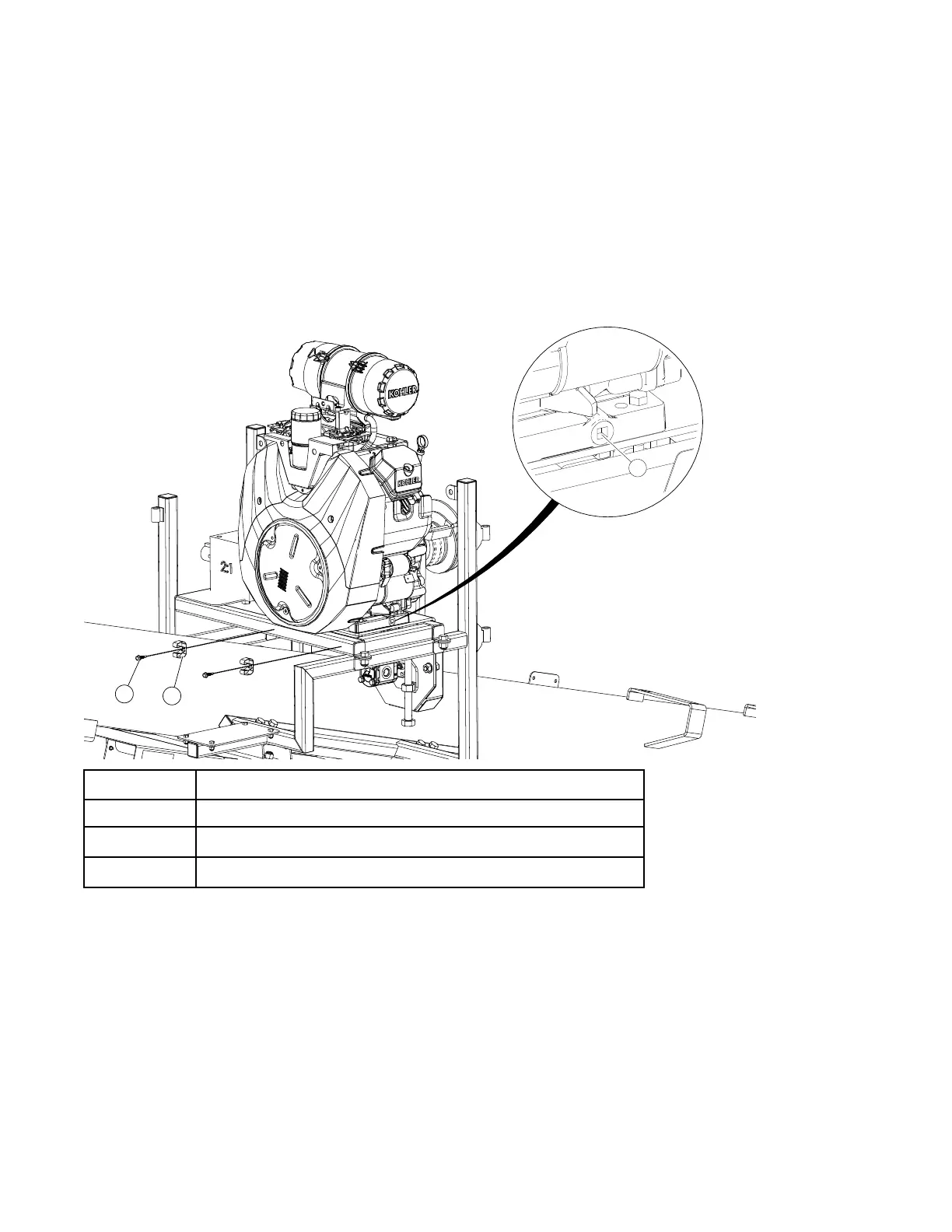

Install the Drain Hose Clamps and Drain Hose
Item
Description
1
Tek Screw
2
Drain Hose Clamp
3
Engine Plug
Hardware: HRDW-15–121
2
1
3
