AGI BCX3 1549 - Install Tank Mount; Install Low Emission Tank (for USA Only)

132 8210-00020 R1
3.37.1 Install Tank Mount
This section covers the tank mount installation for Top-Mount Drive only. For Under-Mount Drive tank mount
installation, refer to Installing the Fuel Tank Mount on page 80.
1. Attach the plastic tank mount bracket (1) using 7/16" x 1" hex flange bolts (2) and 7/16" flange nuts (3).
Note
For the top-mount drive, tank mount bracket share bolts with fuel pump bracket, see Section 3.37.5
– Install Fuel Pump (For Top-Mount Drive) on page 138.
Table 27. Tank Mount
Item
Description Quantity
1
Tank Mount Bracket
1
2
7/16" x 1" Serrated Hex Flange Bolt (GR5)
4
3
7/16" Serrated Hex Flange Nut (GR5)
4
Hardware Kit: HRDW-15-71

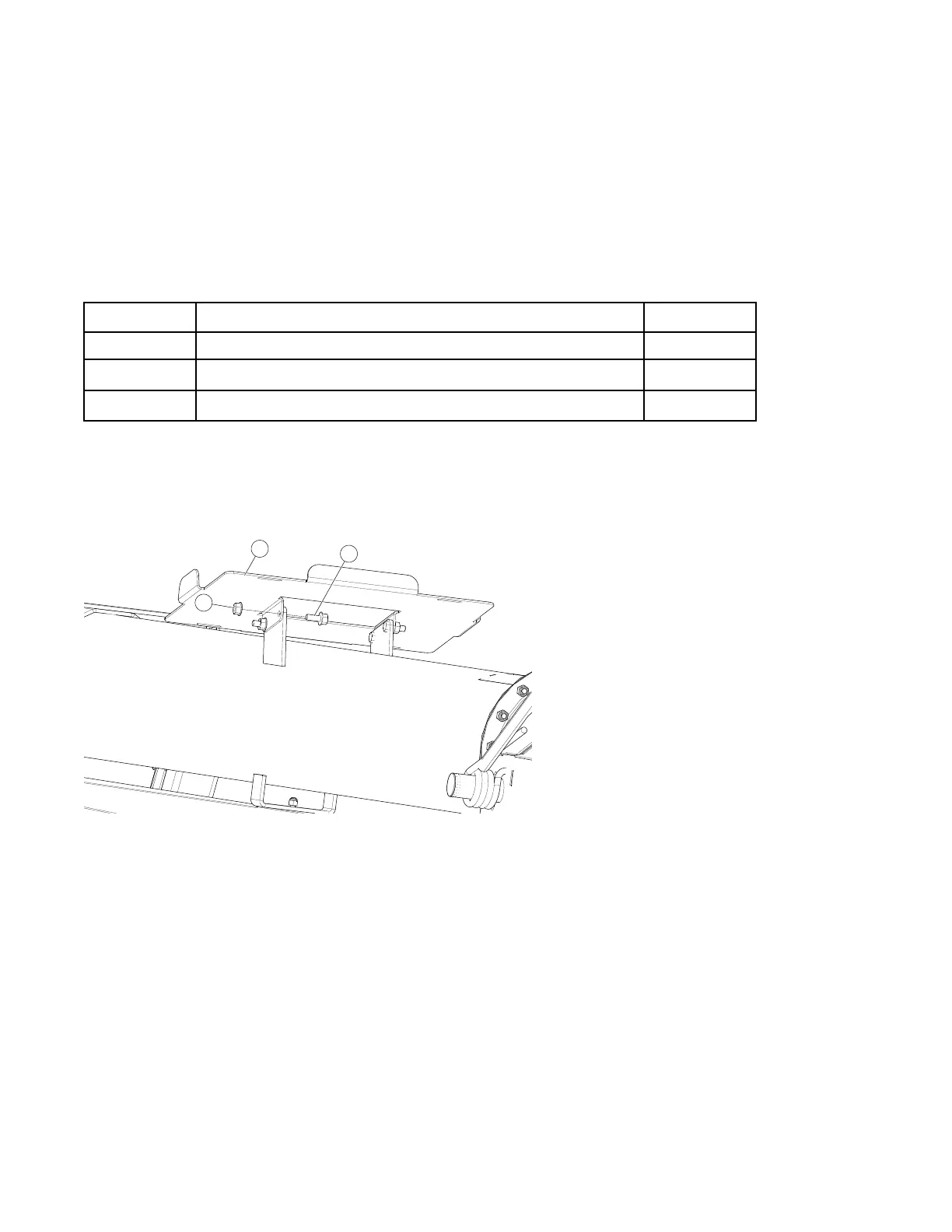

Figure 65. Tank Mount Bracket for Top-Mount Drive
3.37.2 Install Low Emission Tank (for USA only)
1. Secure the tank (6) to the tank bracket with gear clamps (4) (see Figure 66).
2. Attach the 1/4" hose barb (7) to the tank outlet (see Figure 67).
3. Connect the 1/4" fuel line (9) to the hose barb with hose clamp (8).
Æ
4. For Under-mount Drive: To install primer bulb, see Section 3.37.4 – Install Primer Bulb (For Under-Mount
Drive) on page 136.
Æ
5. For Top-mount Drive: To install fuel pump, see Section 3.37.5 – Install Fuel Pump (For Top-Mount Drive) on
page 138).
2
3
1
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
