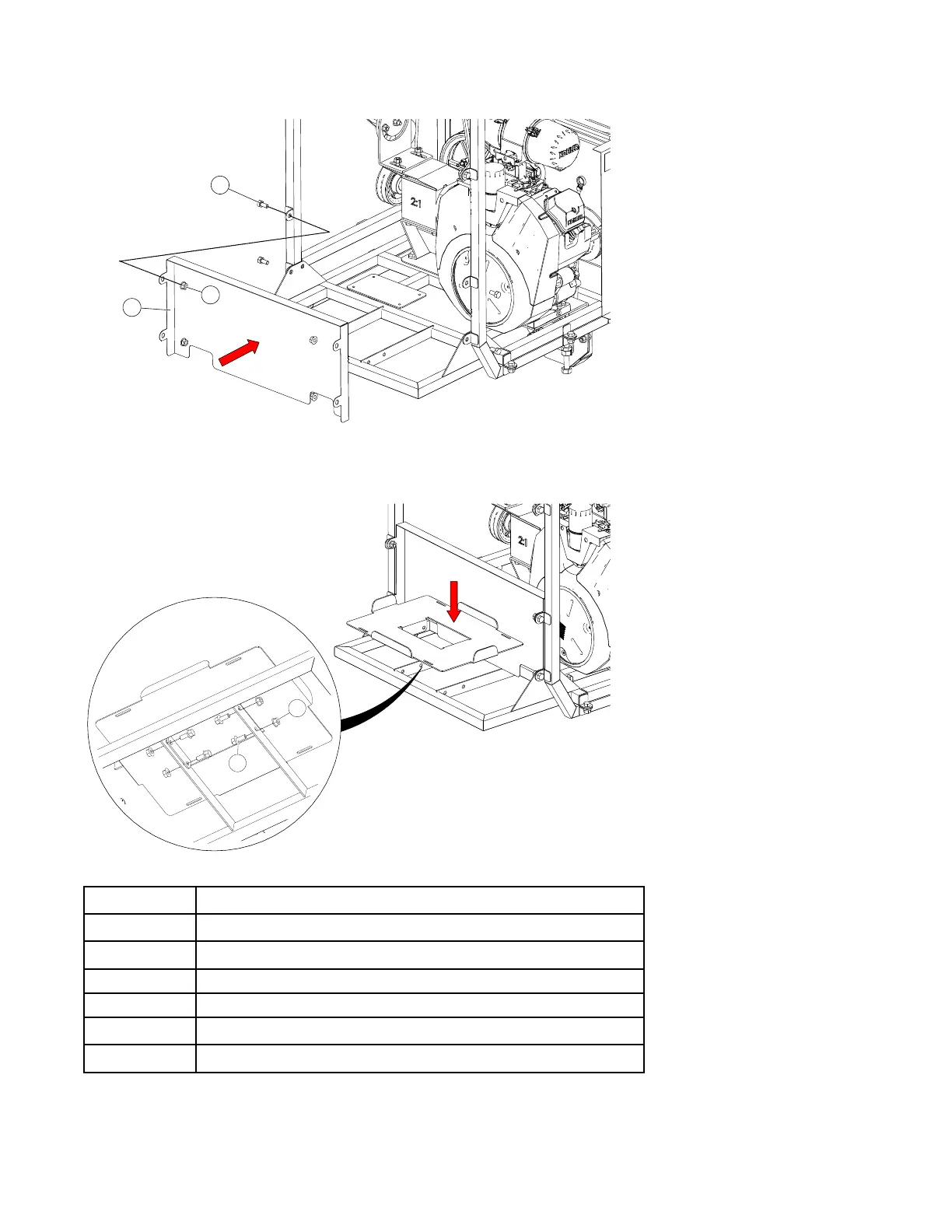

Installing the Fuel Tank Mount
Item
Description
1
1/2" X 1" Hex Bolt (GR 8)
2
1/2" Flange Nut
3
Fuel Tank Guard
4
Fuel Tank Mount
5
7/16" Flange Nut
6
7/16" X 1" Flange Bolt (GR 5)
Hardware Kit: HRDW-15–131, HRDW-15–71
1
3
2
6
5
View of Bottom Side
