AGI BCX3 1549 - Page 81

8210-00020 R1 81

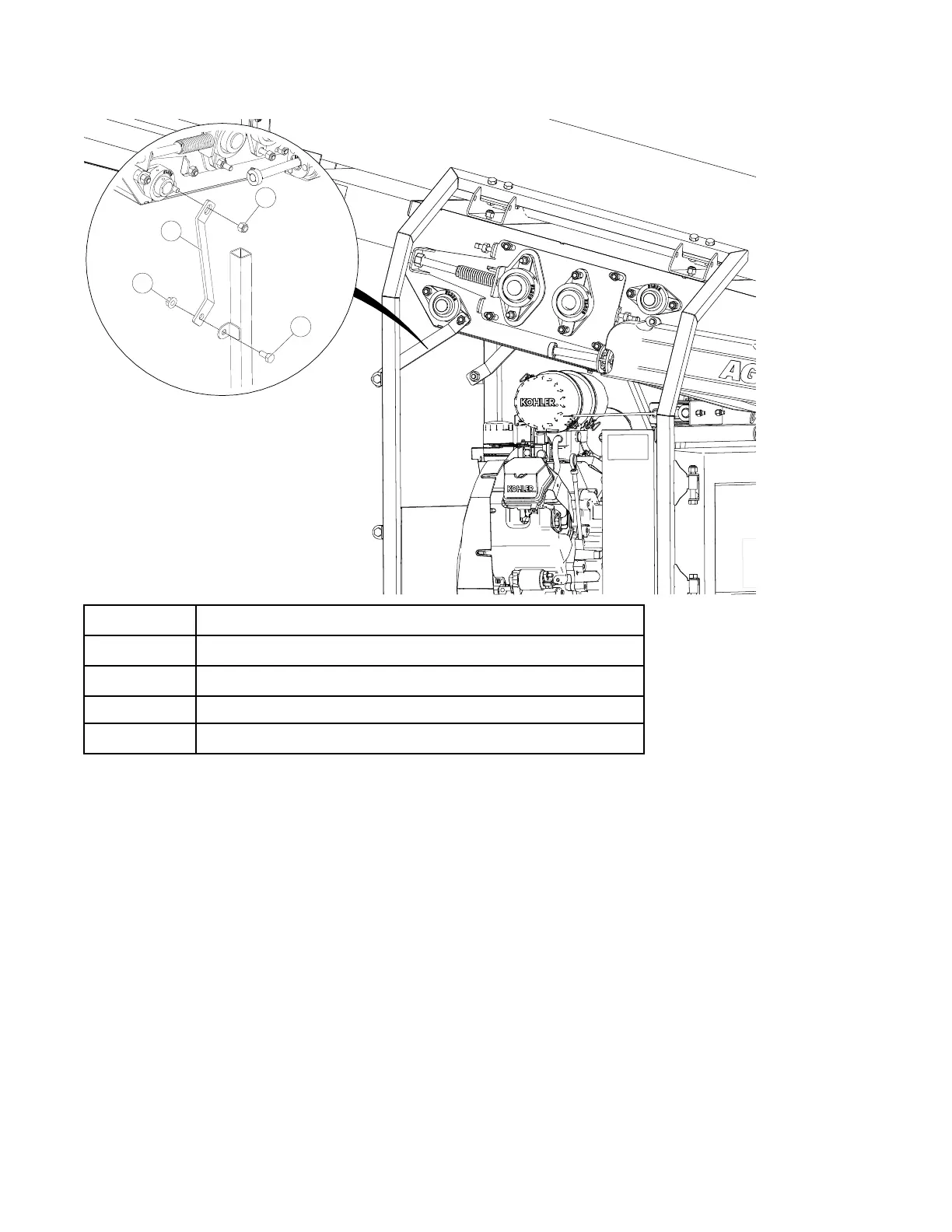

Installing the Stabilizers (x2)
Item
Description
1
1/2" X 1" Hex Bolt (GR 8)
2
1/2" Lock Nut (from S-Drive Bearing)
3
Stabilizer Brace
4
1/2" Lock Nut
Hardware Kit: HRDW-15-131
Note
After the stabilizers are installed, tighten all the frame bolts.
3
4
2
1
