8210-00020 R1 115

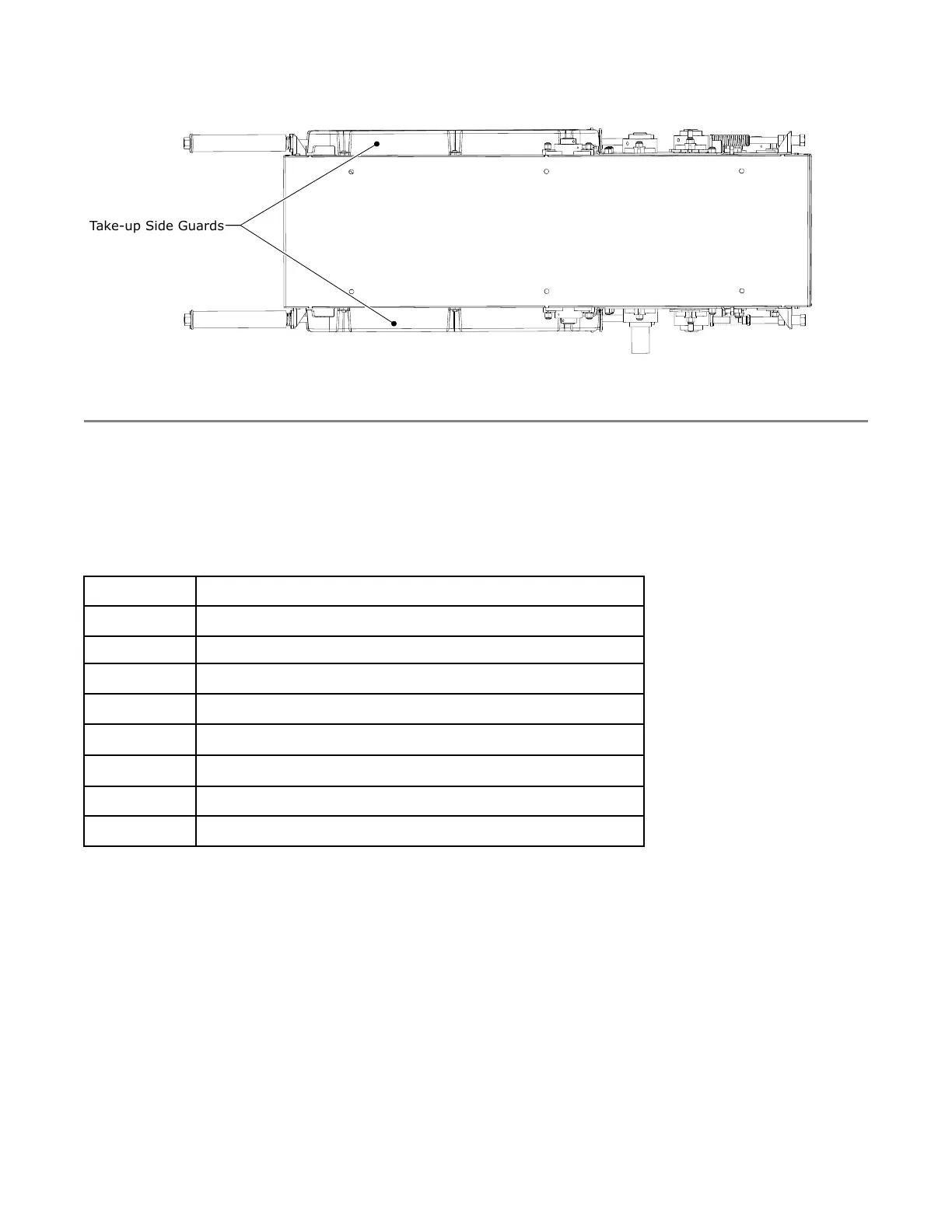

Figure 47. S-Drive with Take-Up Side Guards — Top View
3.26. Install the Weather Guard Mount Bars
1. Install the types of mount bar assemblies in Figure 48 which are indicated by the position arrows and
identifier letters as shown on your particular conveyor model schematic that follows.
2. Adjust the position on all weather guards and mount bars to achieve the best fit.
3. Tighten all nuts.
Table 16. Weather Guard Mount Bar Components
Item
Description
1
Mount Bar (Cross Bar with No Roller)
2
Mount Bar with Roller
3
Belt Guide Nylon Blocks
4
7/16" x 1" Carriage Bolt
5
7/16" Nylon Locknut
6
5/16" x 1-1/2" Carriage Bolt
7
5/16" Hex Nut
8
5/16" Lock Washer
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
