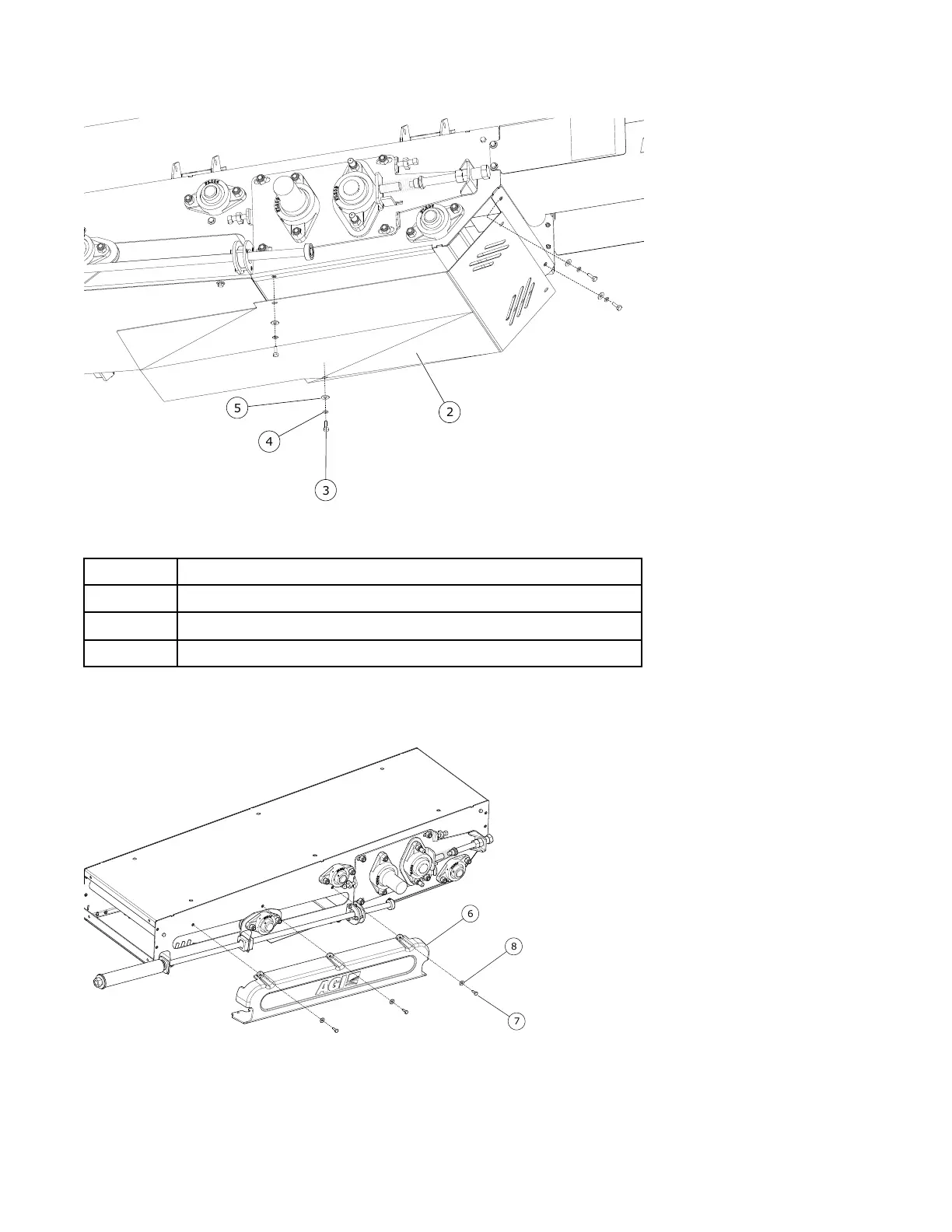

Figure 45. Installing the S-Drive Upper Bottom Guard
5
4
3
2
Table 15. Parts Required to Attach Take-up Guards
Item
Description
6
S-Drive Take-up Side Guard
7
1/4" x 3/4" Hex Bolt (GR5)
8
1/4" Flat Washer
Hardware Kit: HRDW-15-114
Figure 46. Installing the S-Drive Take-up Side Guards
7
6
8
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
